Digilent: Cmod S7: Breadboardable Spartan-7 FPGA Module - 410-376
The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.

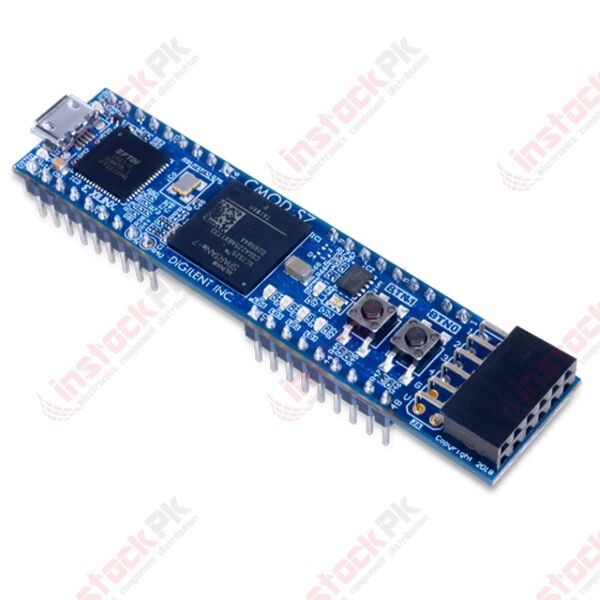

The Digilent Cmod S7 is a small, 48-pin DIP form factor board, populated with 36 pins, built around a Xilinx® Spartan®-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.
The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7" by 3.05", it can also be loaded in a standard socket and used in embedded systems.
The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.
If your design requires transceiver lines or more FPGA resources, we recommend the higher-performance Cmod A7, featuring an Artix-7 FPGA.
The Cmod S7 can be programmed with Digilent's Adept software. Digilent Adept is a unique and powerful solution which allows you to communicate with Digilent system boards and a wide assortment of logic devices. Find out more about Adept here.
To create and modify designs for your Cmod S7, you can use Xilinx's Vivado Design Suite. Vivado is a software designed for the synthesis and analysis of HDL designs. Both variants of the Cmod S7 are supported by the free WebPACK edition of the Vivado Design Suite.
If you are using the MicroBlaze Soft Processor Core from Xilinx, you can make use of the Vitis Core Development Kit or Xilinx Software Development Kit to create embedded applications for your Cmod S7.
Note: Xilinx software tools are not available for download in some countries. Prior to purchasing the Cmod S7, please check the supporting software's availability, as it is required for the board's use.
Features:
-
Xilinx Spartan-7 FPGA (XC7S25-1CSGA225C)
-
3,650 slices containing four 6-input LUTs and 8 flip-flops
-
1,620 Kbits of fast block RAM
-
Three clock management tile, each with a phase-locked loop and mixed-mode clock manager
-
80 DSP slices
-
Internal clock speeds exceeding 450 MHz
-
On-chip analog-to-digital converter (XADC)
-
Programmable over JTAG and Quad-SPI Flash
-
-
Memory
-
4 MB Quad-SPI Flash
-
-
Power
-
Powered from USB or 5V external supply connected to DIP pin 24 (micro USB cable NOT included)
-
-
USB
-
USB-JTAG programming circuitry
-
USB-UART bridge
-
-
Push-buttons and LEDs
-
2 Buttons
-
4 LEDs
-
1 RGB LED
-
-
Expansion Connectors
-
1 Pmod connector
-
8 total FPGA I/O
-
-
48-pin DIP form-factor headers
- 32 total FPGA I/O
- 2 Single-ended 0-3.3V analog inputs to XADC
- 36 populated pins
-
Whats Included:
- Cmod S7 Module
- Custom Digilent cardboard box with protective foam
| Part Number | 410-376 |
|---|---|
| Manufacturer | Digilent |
| Weight (KG) | 0.010000 |
| Packing Unit | 1 Piece |
| Custom tariff number | 8473301180 |
| Product Availability | In Stock |
