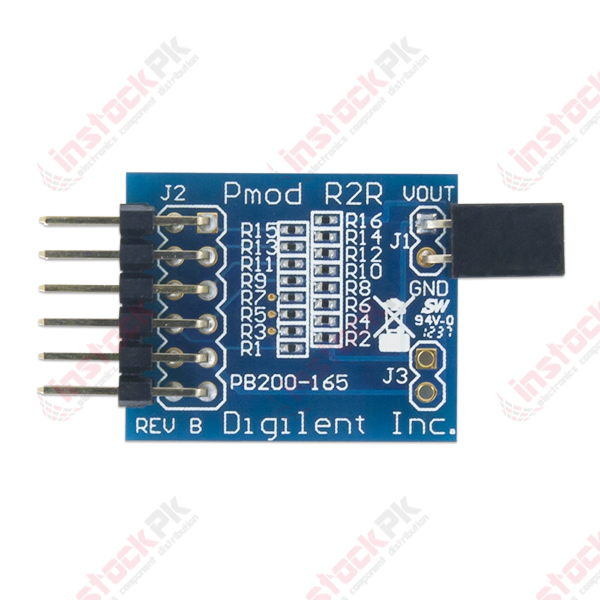

Digilent - Pmod R2R: Resistor Ladder D/A Converter

SKU
MD-01170
PKR950.00
Quantity: 0
The Pmod R2R is resistor ladder with a R-2R resistor configuration. Users can provide 8-bits of parallel data to the module through GPIO signals. This setup teaches users the basic principles behind a Digital-to-Analog Converter.
  • Buy 3 for PKR900.00 each and save 5%
  • Buy 10 for PKR820.00 each and save 14%

The Pmod R2R is resistor ladder with a R-2R resistor configuration. Users can provide 8-bits of parallel data to the module through GPIO signals. This setup teaches users the basic principles behind a Digital-to-Analog Converter.

Support Materials

Datasheet Schematics (PDF)

Features:

  • 8-bit digital-to-analog conversion
  • Convert data at up to 25MHz
  • Easy attachment of oscilloscopes to illustrate the data conversion process
  • Small PCB size for flexible designs 1.0“ × 0.8” (2.54 cm × 2.0 cm)
  • 2×6-pin Pmod connector with GPIO interface
  • Follows Digilent Interface Specification Type 1



What's
Included:

  • Pmod R2R
  • Custom antistatic Pmod packaging
Part Number 410-165
Manufacturer Digilent
Weight (KG) 0.030000
