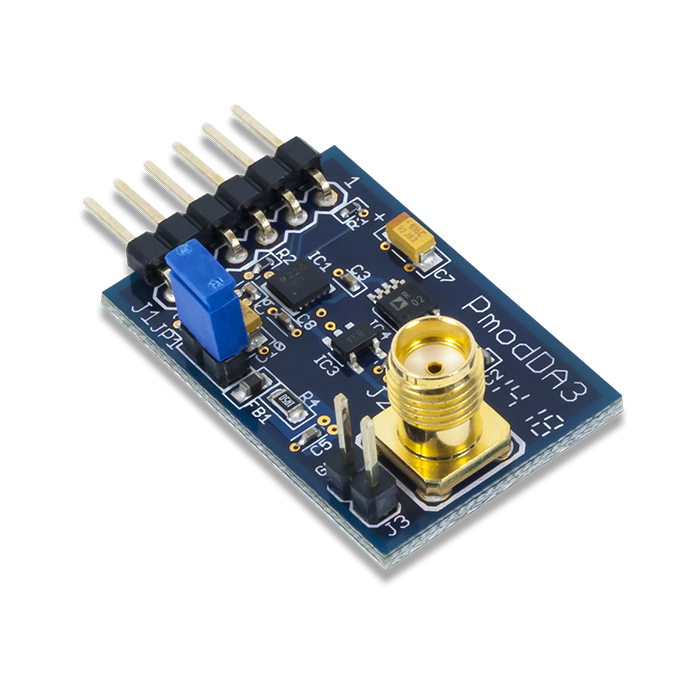

Digilent - Pmod DA3: One 16-bit D/A Output

SKU
MD-01167
PKR6,800.00
Quantity: 0
The Pmod DA3 is a 16-bit Digital-to-Analog converter powered by the Analog Devices AD5541A. The single ended SMA output provides a clean, guaranteed monotonic analog output from the provided information given through an interface similar to SPI.
  • Buy 3 for PKR6,460.00 each and save 5%
  • Buy 10 for PKR6,256.00 each and save 8%

The Pmod DA3 is a 16-bit Digital-to-Analog converter powered by the Analog Devices AD5541A. The single ended SMA output provides a clean, guaranteed monotonic analog output from the provided information given through an interface similar to SPI.

Support Materials

Datasheet Schematics (PDF)

Features:

  • High resolution, 16-bit Digital-to-Analog converter
  • Low noise analog output
  • SMA connector
  • 2.5V reference voltage
  • Small PCB size for flexible designs 1.2“ × 0.8” (3.0 cm × 2.0 cm)
  • 6-pin Pmod connector with GPIO interface
  • Follows Digilent Pmod Interface Specification Type 1



What's
Included:

  • Pmod DA3
  • Custom antistatic Pmod packaging
Part Number 410-241
Manufacturer Digilent
Product Availability In Stock
Weight (KG) 0.020000
