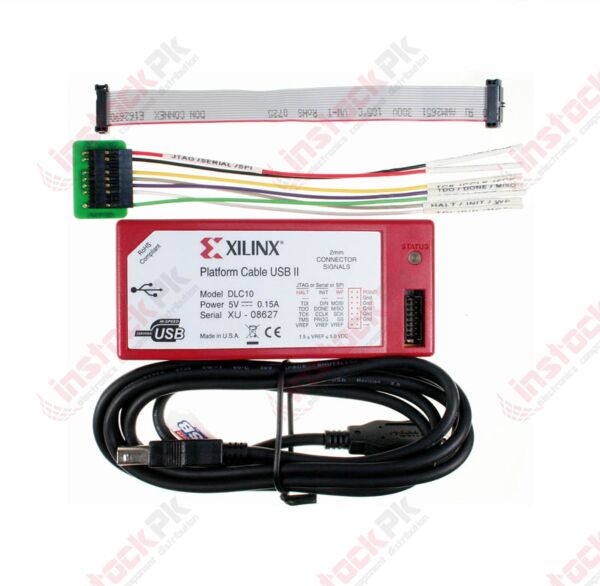

Xilinx Platform Cable USB II DLC10 Programmer HW-USB-II-G

SKU
MD-00403
PKR99,200.00
Quantity: 1
Xilinx is now offering its second generation Pb-Free (RoHS compliant) USB compatible cable for in-circuit configuration and programming of all Xilinx devices.
  • Buy 3 for PKR94,240.00 each and save 5%
  • Buy 10 for PKR91,264.00 each and save 8%

Xilinx is now offering its second generation Pb-Free (RoHS compliant) USB compatible cable for in-circuit configuration and programming of all Xilinx devices.The Platform Cable USB II provides integrated firmware to deliver high-performance, reliable and user-friendly configuration of Xilinx FPGAs and programming of Xilinx PROM and CPLD devices. The Platform Cable USB II cable optimizes direct programming of third-party SPI flash memory devices and indirect programming of SPI or parallel NOR flash memory devices via the FPGA JTAG port. In addition, Platform Cable USB II is a cost effective tool for debugging embedded software and firmware when used with Xilinx applications such as the Embedded Development Kit and ChipScope Pro Analyzer.

Platform Cable USB II is an upgrade to and backwards compatible with Platform Cable USB. It has industry-leading performance and is compatible with Full Speed (USB 1.1) and Hi-Speed (USB 2.0) ports.

FEATURES:

  1. High-performance FPGA and PROM programming and configuration
  2. Includes innovative FPGA-based acceleration
  3. Leverages high-speed slave-serial mode programming interface
  4. Recommended for prototyping use only
  5. Easy to use
  6. Fully integrated and optimized for use with Xilinx iMPACT software
  7. Intuitive multiple cable management from a single application
  8. Automatically senses and adapts to target I/O voltage
  9. Interfaces to devices operating at 5V (TTL), 3.3V(LVCMOS), 2.5V, 1.8V and 1.5V
  10. Intuitive flyleads-to-cable interface labeling

PHYSICAL DIAGRAM:

 PHYSICAL DIAGRAM

COMPATIBLE WITH:

  1. All the Virtex the FPGA Families
  2. All the Spartan the FPGA Families
  3. XC9500 / XC9500XL / XC9500XV CPLDs
  4. CoolRunner XPLA3 / CoolRunner-II CPLDs
  5. XC18V00 device the ISP PROMs
  6. XCF00S / XCF00P Platform the Flash PROMs
  7. The XC4000 Series FPGAs Programs Serial Peripheral interface (the SPI ) flashPROMs

RELATED DOCUMENTS:

  1.  Xilinx PLATFORM CABLE USB II DLC10 Downloader/Programmer Datasheet.

PACKAGE INCLUDES:

  1. 1 X Xilinx PLATFORM CABLE USB II DLC10 Downloader/Programmer
Part Number HW-USB-II-G
Weight (KG) 0.050000
Manufacturer Xilinx
Product Availability Available on Demand
