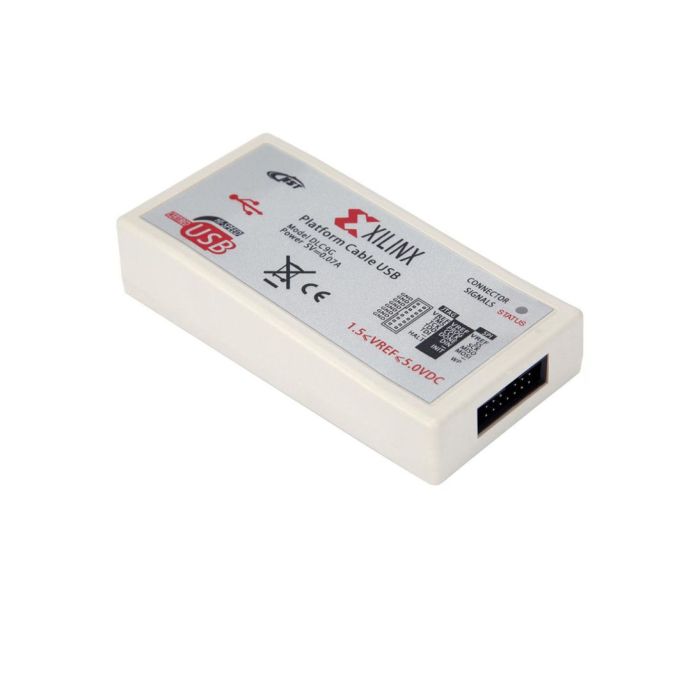

FPGA DLC9G Platform USB JTAG Downloader/Programmer

FEATURES:

1. Support Windows 2000 / XP / Win Vista / Win7 / Win8,32bits, 64bits, Linux operating system
2. I/O voltage compatible 1.2V ~ 5V (TTL), LED status indicating that the target board is connected or not;
3. Original and Xilinx Platform USB Cable is fully compatible programmer, beyond the original factory on the basis of the adaptive target board voltage;
4. Download the clock options, up to 24MHZ, true high-speed, ISE software supports automatic and manual speed;
5. Support CHIPSCOPE high-speed emulation, supports almost all XILINX FPGA, CPLD devices;
6. Use USB interface, no external power supply, power supply ESD protection and overcurrent protection.
7. Support JTAG, Slave Serial, SPI download mode.

COMPATIBLE WITH:

1. All Virtex®FPGA family of devices, including viretex -6 , - 7 above.( XC6SLX9 XC3S500E XC9572XL XC2C64A e.t.c)
2. KINTEX-7 , Zynq-7000 , Artix-7 , the latest FPGA .
3. All Spartan® Family FPGA family of devices , including Spartan6 above.
4. XC9500 / XC9500XL / XC9500XV CPLDs devices;
5. All CoolRunner ™ XPLA3 / CoolRunner-II CPLDs devices;
6. All XC18V00 ISP PROMs devices.
7. All XCF00S / XCF00P / XL PROMs devices.
8. All XC4000 series FPGAs devices.
9. All SPI PROMs devices.

PACKAGE INCLUDES:

1. 1 x Xilinx FPGA DLC9G Platform USB Downloader/Programmer.
2. 1 x 10-pin 2.54mm pitch 15cm flat Cable
3. 1 x 14-pin 2.54mm pitch 15cm flat Cable
4. 1 x 7-pin fly Duppont Cables
5. 1 x Cable Adapter
6. 1 x USB Cable
