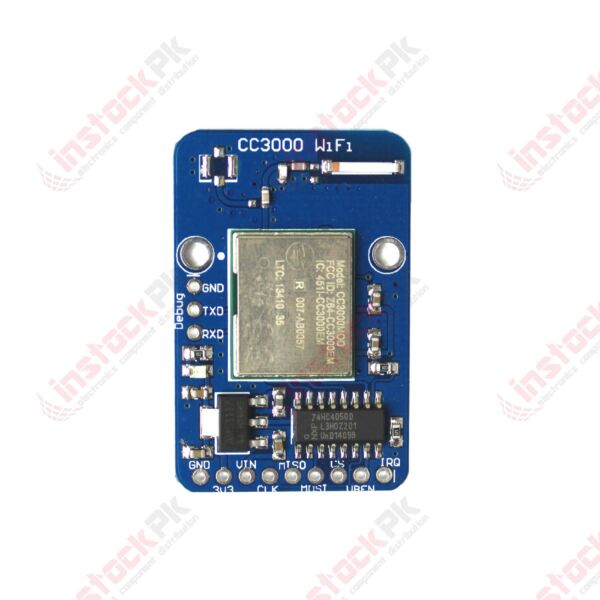

WiFi Breakout Board with Ceramic Antenna C3000
SKU
MD-004219
PKR7,720.00
Available in 15-30 Days
WiFi Breakout Board with Ceramic Antenna C3000
- Buy 5 for PKR7,335.00 each and save 5%
- Buy 20 for PKR7,100.00 each and save 8%
- Buy 50 for PKR6,950.00 each and save 10%
Categories: Smart Boards, Communication Modules, Wifi & Bluetooth Module
This breakout board from Adafruit features TI’s CC3000 Wi-Fi module on a compact, breadboard-compatible PCB with an onboard ceramic antenna. The CC3000 uses SPI for communication instead of UART, so the communication speed is not limited to a fixed baud rate. It supports 802.11b/g, open/WEP/WPA/WPA2 security, TKIP, and AES, and a built-in TCP/IP stack with a BSD socket interface supports TCP and UDP in client and server mode with up to 4 concurrent socket connections.
FEATURES:
- Uses SPI for communication
- Integrated 3.3 V regulator
- Integrated level shifter
- Tri-state buffer on the MISO pin
- Onboard ceramic antenna
- Two mounting holes
- Compact with 0.1″-pitch holes that are compatible with standard solderless breadboards and perfboards
PHYSICAL DIAGRAM:
RELATED DOCUMENTS:
HOW TO CONNECT WITH ARDUINO:
PACKAGE INCLUDES:
- 1 X WiFi Breakout Board with Ceramic Antenna C3000
| Weight (KG) | 0.050000 |
|---|---|
| Manufacturer | Adafruit |
| Voltage (Min) | NA |
| Voltage (Max) | 3.3V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | 330m |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | NA |
| Range | NA |
| Temperature Range (Min) | -40°C |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | 802.11b/g, open/WEP/WPA/WPA2 |
| Interface | NA |
| Num of Pin's | NA |
| Diameter | NA |
| Size (mm) | NA |
