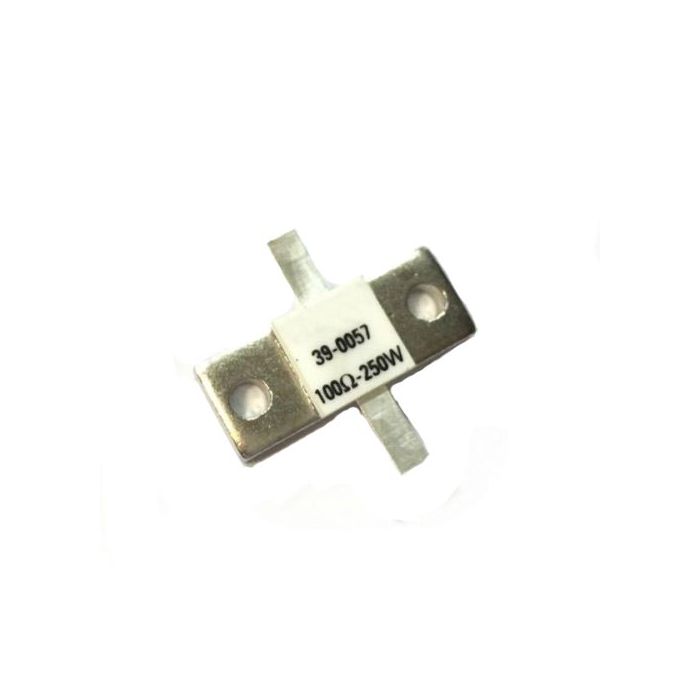

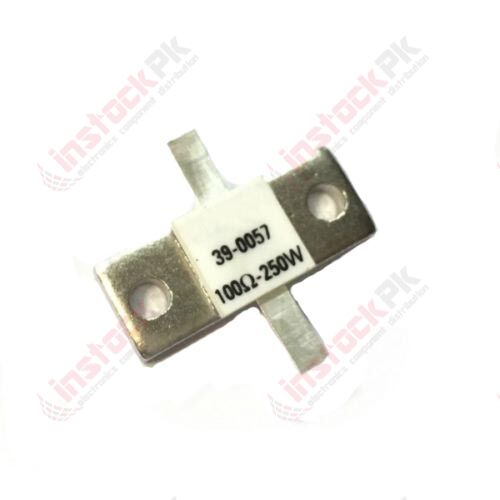

Stripline Coupler Resistor 100Ω (250W)

FEATURES:

1. High power rating, ,small size and ultra Precision.
2. With Standard winding
3. High stability and Strong construction.
4. Easy installation

SPECIFICATIONS:

1. Range of nominal resistance: 100Ω
2. Resistance tolerance  ±5%
3. Frequency range: 0~2GHz
4. Standing wave ratio: 1.2~1.3
5. Insulation resistance≥: 1GΩ
6. Withstand voltage: 500V/1 mm (Substrate thickness)
7. Rated power: 250W (70°C)
8. Temperature range: -55°C~+165°C
9. Temperature shock:  (-55°C/+125°C, 3 times)ΔR≤±5%R
10. Moisture proof: (GJB306A-96-Method106)ΔR≤±5%R
11. Vibration: (10-500HZ, 0.75mm, 6h)ΔR≤±3%R, No mechanical damage
12. Test at low temperature: (-55°C, 24h) ΔR≤±5%R
13. Load life: (96)ΔR≤±5%
14. Collision: ΔR≤±3%R
15. Terminal strength(10N,5S): No loose and fall off
16. Solderability(240℃,3s)
17. Tin layer covering area of 95%

PACKAGE INCLUDES:

1. 1 X Stripline Coupler Resistor 100Ω (250W)
