Simplex SFP Transceiver Module 1000BASE-LX 1310nm-TX/1550nm-RX DDM - GE-SFP-LX20-SM1310-BIDI
- Buy 3 for PKR5,225.00 each and save 5%
- Buy 10 for PKR5,060.00 each and save 8%
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 1G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

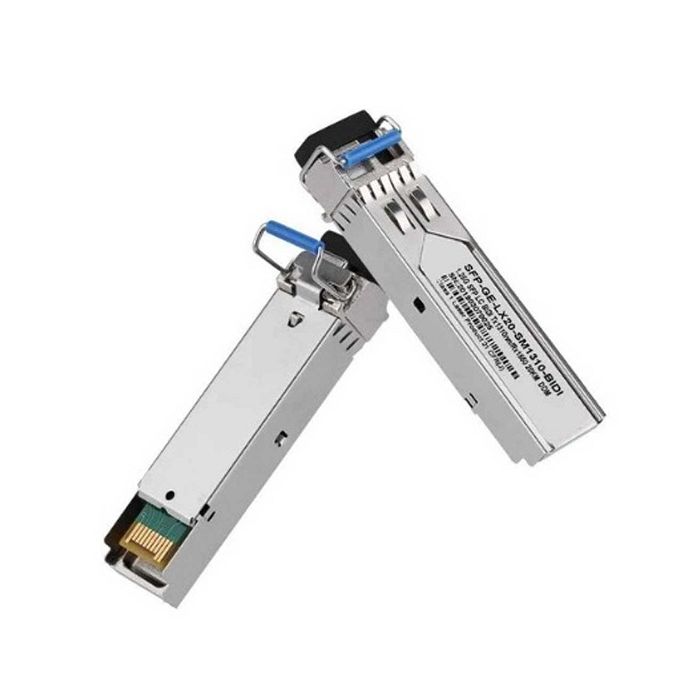

GE-SFP-LX20-SM1310-BIDI Module
The GE-SFP-LX20-SM1310-BIDI is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 20 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to the IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
Features:
- Max. power consumption 1.5 W
- Saving half fiber by using only one fiber for transmiting and receiving
- Hot pluggable SFP MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
Specifications
Single-Fiber SFP Series Module (BIDI) Specifications
|
Model |
GE-SFP-LX20-SM1310-BIDI |
GE-SFP-LX20-SM1550-BIDI |
|
|
Data rate |
1.25 Gbps |
||
|
Form factor |
SFP |
||
|
Connector type |
BIDI LC |
||
|
Cable type |
SMF |
||
|
Fiber end face finish type |
Ultra Physical Contact (UPC) |
||
|
Transmitter type |
FP |
DFB |
|
|
Receiver type |
PIN |
||
|
Reach |
20 km (65,616.80 ft.) |
3 km (9,842.52 ft.) |
|
|
Bit error ratio (BER) |
1.00E-12 |
||
|
Data diagnosis-capable (DDM/DOM) |
Yes |
||
|
Power consumption |
≤ 1.5 W |
||
|
Transmitter Optical Parameters |
|||
|
Wavelength |
1310 nm TX 1550 nm RX |
1550 nm TX 1310 nm RX |
|
|
Max. transmit power (AVG) |
–3 dBm |
||
|
Min. transmit power (AVG) |
–9 dBm |
||
|
Min. extinction ratio |
≥ 9 dB |
||
|
Receiver Optical Parameters |
|||
|
Receive sensitivity (OMA) |
< –20 dBm |
< –22 dBm |
|
|
Overload optical power (AVG) |
–3 dBm |
||
|
Environment and Reliability |
|||
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
||
|
Operating humidity |
5% RH to 95% RH |
||
|
Storage temperature |
–40°C to +85°C (–40°F to +185°F) |
||
|
Storage humidity |
5% RH to 95% RH |
||
|
Dimensions and Weight |
|||
|
Dimensions (W x D x H) |
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.) |
||
|
Weight |
35 g (0.08 lbs.) |
||
| Part Number | GE-SFP-LX20-SM1310-BIDI |
|---|---|
| Weight (KG) | 0.010000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
