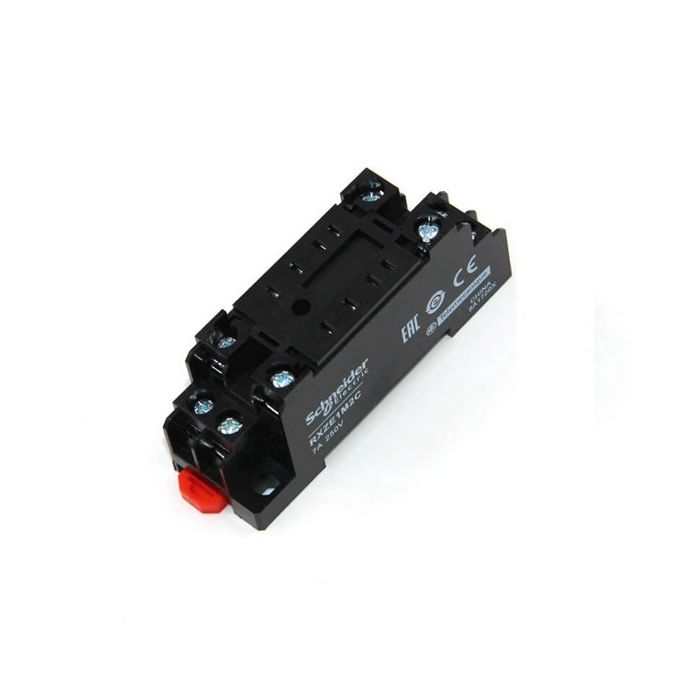

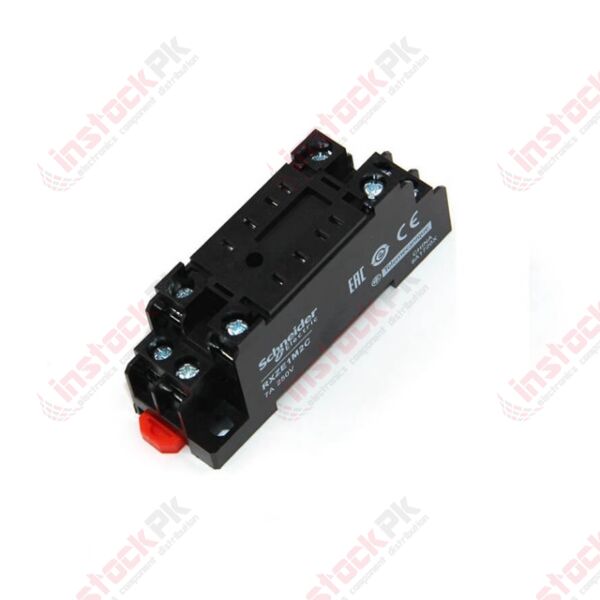

Schneider Electric: Relay Socket Base RXZ - Mixed Contact - 7A - 250V - Screw Clamp - RXZE1M2C

PKR 1,350.00

SKU

MD-02162

"This Harmony RXZ plug-in socket has a rated voltage of 250V AC with an output rating of 7A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

Specifications

Main
Range of produc	Harmony Electromechanical Relays
Device short name	RXZ
Product or component type	Socket
Product compatibility	Plug-in relay RXM with 2 C/O contact
Contacts type and composition	2 C/O
[Ith] conventional free air thermal current	7 A

Complementary
[Ue] rated operational voltage	250 V
contact terminal arrangement	Mixed
Connections - terminals	Screw clamp terminals, 1 x 0.2...1 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.2...2 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Tightening torque	< 0.8 N.m for M3 screw(s)
Fixing mode	By screw (panel) Clip-on (35 mm symmetrical DIN rail)
[Uimp] rated impulse withstand voltage	4 kV
Overvoltage category	III
Pollution degree	3
Sale per indivisible quantity	10
Width	22.5 mm
Net weight	0.034 kg

More Information

More Information
Part Number	RXZE1M2C
Manufacturer	Schneider
Weight (KG)	0.100000
Product Availability	Available on Demand
