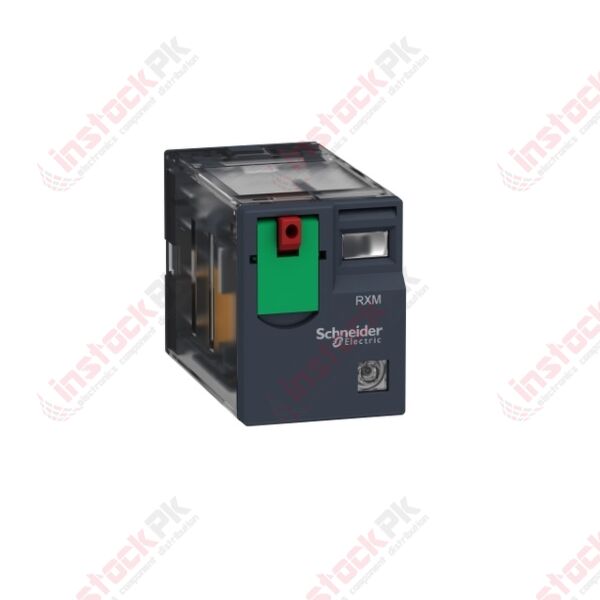

Schneider Electric: Harmony Electromechanical Miniature Plug in Relay, 10A, 2CO, 24VDC - RXM2CB2BD
SKU
MD-02161
PKR 1,750.00
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
Categories: Relays, Relay Module
Description
This Miniature Plug-In Relay reflects Schneider Electric expertise in relay since 1924, by help to reduce the size of enclosures and at the same time increase machine reliability. It has a large choice of number of contacts for high rated current use with space-saving design It also offer one-step lockable test button They are intendedfor industrial machines, packaging, textile, HVAC, automation control panels, low / medium voltage switchgear, motor Controls, PLC Interfaces, power supplies,Building or medical equipment, lighting Controls.
Specifications
| Range of produc | Harmony Electromechanical Relays |
|---|---|
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Utilisation coefficient | 20 % |
| Sale per indivisible quantity | 10 |
| Contacts type and composition | 2 C/O |
|---|---|
| contact operation | Standard |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 10 A at -40…55 °C |
| Status LED | With |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 3.6 kV during 1.2/50 µs conforming to IEC 61810-7 |
| Contacts material | Silver alloy (Ag/Ni) |
| [Ie] rated operational current | 10 A (AC-1/DC-1) conforming to UL 10 A (AC-1/DC-1) NO conforming to IEC 5 A (AC-1/DC-1) NC conforming to IEC |
| Minimum switching current | 10 mA |
| Maximum switching voltage | 250 V AC 125 V DC |
| Minimum switching voltage | 17 V |
| Load current | 10 A at 250 V AC 10 A at 30 V DC |
| Maximum switching capacity | 2500 VA AC 300 W DC |
| Minimum switching capacity | 170 mW |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption | 1 W, DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Operating time | 20 ms |
| Average resistance | 630 Ohm network: DC at 20 °C +/- 10 % |
| Rated operational voltage limits | 19.2...26.4 V DC |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall width | 21 mm |
| CAD overall height | 27 mm |
| CAD overall depth | 55 mm |
| Net weight | 0.037 kg |
| Dielectric strength | 1800 V AC between coil and contact 1550 V AC between poles 1000 V AC between contacts |
| Safety reliability data | B10d = 100000 |
| Part Number | RXM2CB2BD |
|---|---|
| Manufacturer | Schneider |
| Product Availability | Available on Demand |
