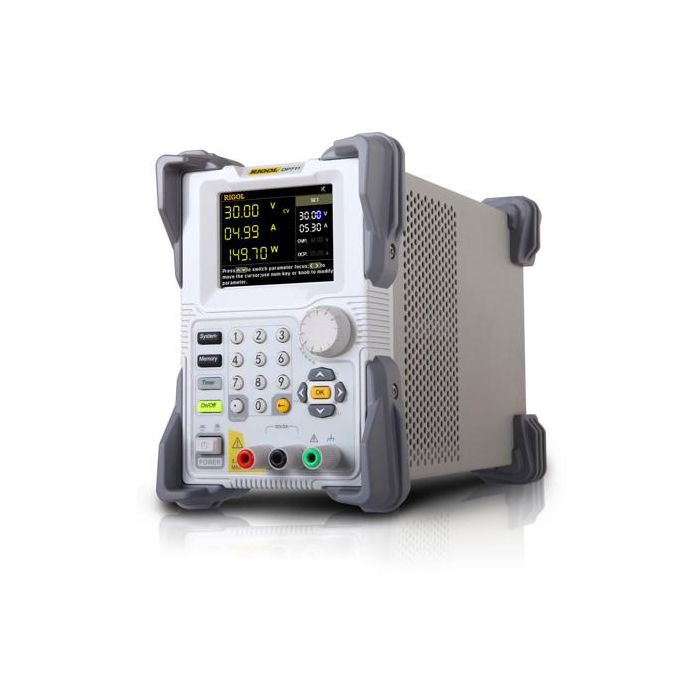

Rigol - Single Channel Programmable DC Power Supply DP711 (30V/5A)
PKR 74,700.00
SKU
MD-00907
- Buy 3 for PKR 70,965.00 each and save 5%
- Buy 10 for PKR 68,724.00 each and save 8%
Rigol Single Channel Programmable DC Power Supply DP711 (30V/5A)
The Rigol DP711 is a very high quality programmable laboratory power supply with one DC output (30 V/5 A) and a maximum power output of 150 W. Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure. The Rigol DP711 features a relative large (8.9 cm / 3.5") and easy to read TFT display. A timer control can be used to set the output signal to different values in up to 2048 groups.
FEATURES:
- Voltage / Current: +30 V / 5 A
- I/O Interfaces: RS-232
- Display: 8CM- TFT
SPECIFICATIONS:
|
Specifications |
Rigol DP711 |
|
Outputs |
1 |
|
Output Power (max.) |
150 W |
|
Overtemperature shut down |
55 °C |
|
Working Temperature |
0 °C to 40 °C |
|
Cooling Method |
Fan cooling |
|
Output Voltage |
Rigol DP711 |
|
Output Voltage (max.) |
0 to +30 V/DC |
|
Accuracy |
±0.05% + 20 mV |
|
Resolution |
10 mV (1 mV with high res. option) |
|
Overvoltage Protection |
0.01 V to 33 V |
|
Load Regulation |
<0.01% + 2 mV |
|
Line Regulation |
<0.01% + 2 mV |
|
Ripple and Noise |
<500 µVrms / 3 mVpp |
|
Output Current |
Rigol DP711 |
|
Output Current (max.) |
5 A/DC |
|
Accuracy |
±0.2% + 10 mA |
|
Resolution |
10 mA (1 mA with high res. option) |
|
Overcurrent Protection |
0.01 A to 5,5 A |
|
Load Regulation |
<0.01% + 2 mA |
|
Line Regulation |
<0.01% + 2 mA |
|
Ripple and Noise |
<2 mArms |
|
Programmable power supply |
Rigol DP711 |
|
Display |
8.9 cm (3.5") TFT-LCD |
|
Resolution |
320 × 240 Pixel |
|
Additional Interfaces |
RS232 |
|
Dimensions (W × H × D) |
14 cm × 20.2 cm × 33.2 cm |
|
Weight |
6.9 kg |
|
Input |
230 V/AC, 220 V/AC, 120 V/AC oder 110 V/AC (adjustable) |
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X Rigol Single Channel Programmable DC Power Supply DP711 (30V/5A)
| Part Number | DP711 |
|---|---|
| Weight (KG) | 6.900000 |
| Manufacturer | RIGOL |
| Product Availability | In Stock |
| Voltage (V) | 30 |
| Power | 150W |
| Output Voltage | NA |
| Current (A) | 5 |
| Temperature Range (Min) | -40°C |
| Size (mm) | NA |
