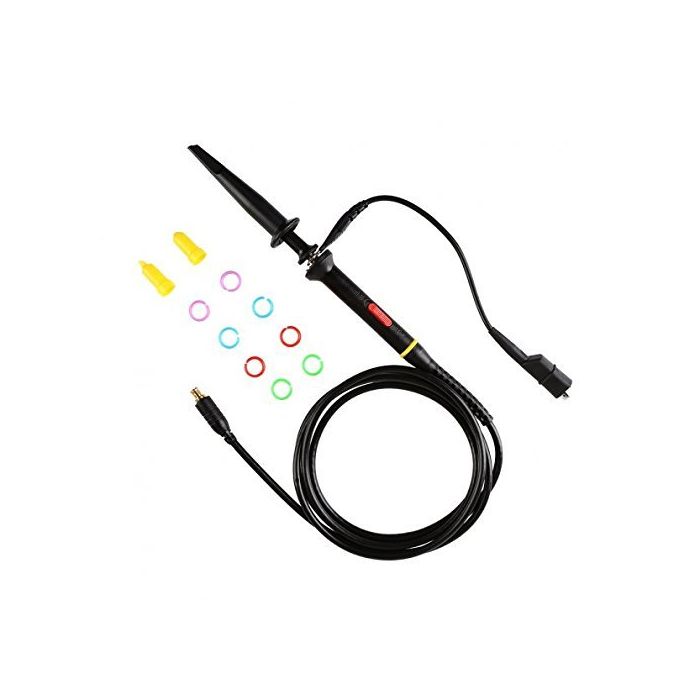

MCX Probe for ARM Digital Oscilloscope DSO201/DSO211, DSO202 DSO203
PKR 2,100.00
SKU
MD-01048
SainSmart Probe for ARM Nano digital Oscilloscope DSO201 DSO202 DSO203 MCX-Probe-x1-amp-x10 60MHz Black Oscilloscope Clip Probes with Accessory Kit Purchase in Pakistan from inStock.pk
| Model: | MCX-B |
| Bandwidth: | 60 MHz |
| Rise Time: | 5.8ns |
| Attenuation Ratio: | 1X & 10X |
| Input Resistance: | 1x:70pF~120pF , 10X:14pF~18pF |
| Input Capacitance: | 1X:70pF~120pF , 10X:14pF~18pF |
| Maximum Input: |
1X:200 Working Voltage(Vp-p） 10X:600 Working Voltage(Vp-p） |
| Compensation Range: | 15~45pF |
| Operation Environment : | 0~50℃ , 0~80%RH |
| Storage Environment: | -20~60℃ , 0~90%RH |
| Length : | 120±2cm |
| Part Number | NA |
|---|---|
| Manufacturer | SainSmart |
| Weight (KG) | 0.030000 |
