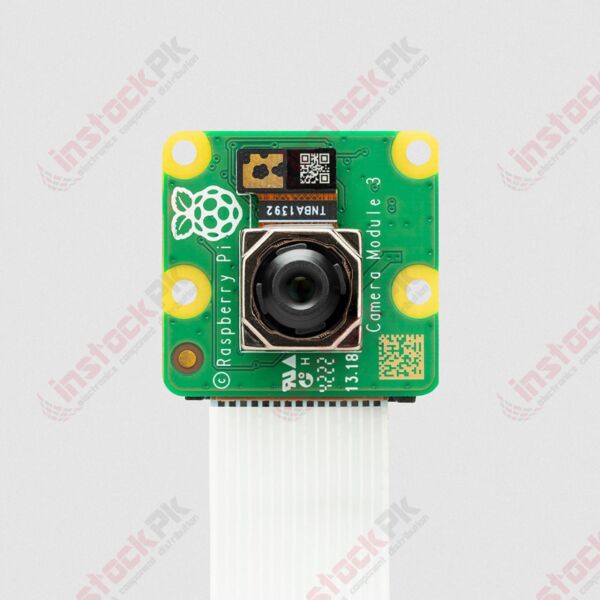

Raspberry Pi Camera Module 3 – 12MP Autofocus Camera

Capture detailed images and high-quality video with the Raspberry Pi Camera Module 3, a compact camera module designed for Raspberry Pi-based projects. Built around the Sony IMX708 back-illuminated CMOS image sensor, it delivers 11.9-megapixel still images, fast phase-detection autofocus and High Dynamic Range (HDR) imaging.

Whether you are developing a robotics project, building a computer vision system, creating an educational prototype or experimenting with digital photography, the Camera Module 3 provides a versatile imaging solution.

Key Features

• 12MP-class Image Sensor: Sony IMX708 sensor with 11.9-megapixel effective resolution.

• Fast Autofocus: Phase Detection Autofocus (PDAF) helps achieve sharp focus on subjects at varying distances.

• HDR Imaging: Captures a wider range of brightness levels in supported modes, with HDR output up to 3 megapixels.

• High-Resolution Images: Maximum still-image resolution of 4608 × 2592 pixels.

• Standard Field of View: 75° diagonal field of view for general-purpose imaging.

• Video Recording: Supports multiple video modes, including 1080p50 and high-frame-rate recording at lower resolutions.

• Compact Design: Small, lightweight camera board suitable for embedded projects.

• Raspberry Pi Software Support: Works with supported Raspberry Pi camera software, including libcamera and Picamera2.

Applications

The Raspberry Pi Camera Module 3 is suitable for a wide range of projects, including:

• Raspberry Pi photography and video recording

• Robotics and machine vision

• Computer vision and image-processing applications

• DIY smart devices and monitoring systems

• Educational projects and electronics prototyping

• Time-lapse photography and automated image capture

• Embedded imaging and experimental vision systems

Technical Specifications

• Product: Raspberry Pi Camera Module 3

• Image Sensor: Sony IMX708

• Effective Resolution: 11.9 megapixels

• Maximum Still Resolution: 4608 × 2592 pixels

• Sensor Type: Back-illuminated, stacked CMOS

• Pixel Size: 1.4 µm × 1.4 µm

• Autofocus: Phase Detection Autofocus (PDAF)

• HDR: Supported, up to 3MP output

• Diagonal Field of View: 75°

• Interface: CSI-2

• Image Output: RAW10

• Dimensions: Approximately 25 × 24 × 11.5 mm

• Operating Temperature: 0°C to 50°C

Compatibility

The camera is designed for supported Raspberry Pi computers with a compatible camera interface and appropriate software.

Some Raspberry Pi models use different camera connector types. Raspberry Pi 5 and Raspberry Pi Zero installations may require a compatible camera cable or adapter. Please check your board's connector and cable requirements before ordering.

• 1 × Raspberry Pi Camera Module 3

• 1 × Standard FFC camera cable

• 1 × Raspberry Pi Zero-compatible FFC camera cable

• 1 × User manual

Note: This listing describes the standard-field-of-view version. Raspberry Pi Camera Module 3 Wide, NoIR and NoIR Wide versions are separate variants with different field-of-view or infrared-filter characteristics. Confirm the exact variant and included accessories before purchase.
