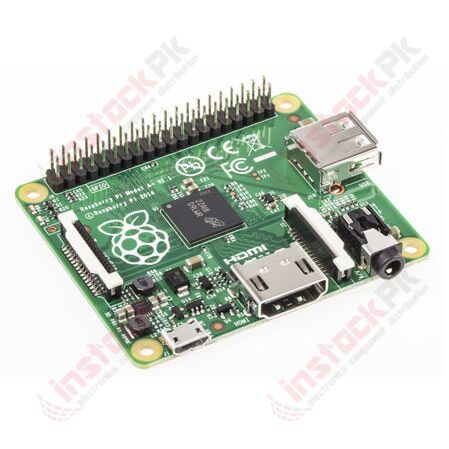

Raspberry Pi Model A+ Broadcom BCM2835

The Raspberry Pi Model A+ is a tiny computer board that's up and running when a keyboard, mouse, display, PSU and MicroSD card with installed OS are added. It’s a miniature ARM-based PC which can run many of the applications that normally require a desktop PC, like spreadsheets, word-processing and games. It also plays High-Definition video. The model A+ features lower power consumption, better audio performance and a 40-pin GPIO connector amongst other improvements over the earlier model A. It is also even smaller! Raspberry Pi is an Open-Source product designed to be supported by Internet-based user forums.

 SPECIFICATIONS:

1. Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and VideoCore IV dual-core GPU
2. GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
3. GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
4. 256MB SDRAM
5. HD 1080p video output
6. Composite video (PAL/NTSC) output
7. Stereo audio output
8. HDMI 1.3 & 1.4 video/audio socket
9. 3.5mm 4-pole audio/composite video out jack socket
10. 1 x USB 2.0 socket
11. 15-way MPI CSI-2 connector for Raspberry Pi HD video camera: 70280250
12. 15-way Display Serial Interface connector
13.  MicroSD card socket
14. Boots from MicroSD card, running a version of the Linux operating system
15. 40-pin header for GPIO and serial buses (compatible with Raspberry Pi Model A 26-pin header)
16. Header footprint for JTAG connector
17. Power supply: +5V @ 2A via microUSB socket
18. Dimensions: 66 x 56 x 14mm

 PACKAGE INCLUDES:

1. 1 X Raspberry Pi A+ Broadcom BCM2835 256MB RAM
