Waveshare: Raspberry Pi Expansion Board DVK512

SKU
MD-00190
PKR4,100.00
Quantity: 1

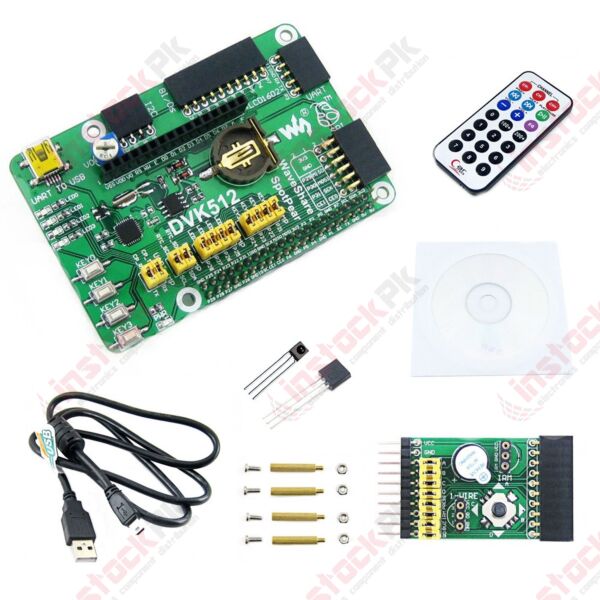

This DVK512 GPIO Development Board Pack with Accessories for Raspberry Pi is an accessories pack (type A) to be used with Raspberry Pi 2 model B. It consists of a DVK512 expansion board, LCD, various modules, and other accessories like wires and cables, etc.
  • Buy 2 for PKR3,895.00 each and save 5%
  • Buy 5 for PKR3,772.00 each and save 8%

Overview

DVK512 is an expansion board designed for Raspberry Pi, integrates various components and interfaces for connecting external accessory boards. It's ideal for Raspberry Pi evaluation and development.

Supported Pi

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.

What's on the DVK512

RPi expansion board on board resource

  1. Pinheaders for connecting with the RPi
  2. UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
  3. 8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
  4. SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
  5. I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
  6. Character LCD interface: for connecting character LCDs like LCD1602
  7. USB connector: USB TO UART, supported by onboard converter CP2102
  8. Power indicator
  9. User LEDs
  10. User Keys
  11. Potentiometer: for LCD1602 contrast adjustment
  12. RTC battery holder
  13. PCF8563: onboard RTC chip
  14. 32.768K crystal: RTC crystal
  15. CP2102: onboard USB TO UART chip, for debugging
  16. CP2102 jumper
  17. RTC jumper
  18. User LEDs jumper
  19. User Keys jumper

Package Content

  1. DVK512 x 1
  2. USB type A plug to mini-B plug cable x 1
  3. 4-pin 2-pin wires pack x 1
  4. RPi screws pack (2pcs) x 1



For jumpers above:

  • short the jumper to connect to I/Os used in example code
  • open the jumper to connect to other custom pins via jumper wires

DVK512 Photos

RPi expansion board
DVK512 RPi expansion board
RPi expansion board
DVK512 RPi expansion board back view
RPi expansion board
DVK512 RPi expansion board
RPi expansion board
Connecting with LCD1602
RPi expansion board
Connecting with RPi A+
RPi expansion board
Connecting with RPi A+ and accessory boards
RPi expansion board
Connecting with RPi B+
RPi expansion board
Connecting with RPi B+ and accessory boards

Development Resources

The User Guide CD includes development resources listed as follow:

  • User manual
  • Schematic (PDF)
  • Examples in C (Linux API source code)
  • Development documentations (Raspbian configuration, C library installation)
  • Raspbian (the configured system image for RPi)

Examples in C:

  • LED (I/Os)
  • Logic Level Converter (I/Os)
  • JOYSTICK (I/Os)
  • Key (I/Os)
  • BUZZER (PWM)
  • DS18B20 (1-WIRE)
  • IRM (I/Os)
  • LCD1602 (I/Os)
  • PCF8563 (RTC)
  • PCF8591 (AD/DA)
  • LSM303DLHC (I2C)
  • L3G4200D (SPI)
  • CP2102 (UART)
  • GPS (UART)
Part Number DVK512
Manufacturer Waveshare
Product Availability In Stock
Weight (KG) 0.050000
