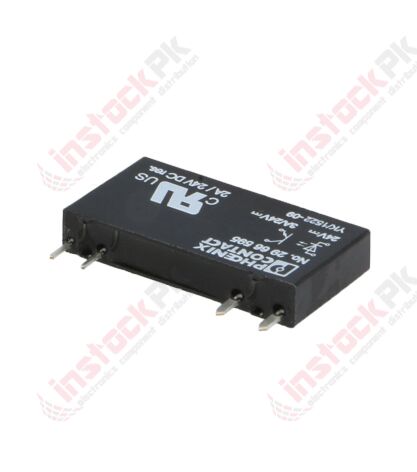

Phoenix Contact Solid State Relay OPT-24DC/ 24DC/ 2 (2966595)

Plug-in miniature solid-state relay, power solid-state relay, 1 N/O contact, input: 24 V DC, output: 3 - 33 V DC/3 A

FEATURES:

1. Test voltage relay winding/relay contact: 2.5 kV (50 Hz, 1 min.)
2. Operating mode: 100% operating factor
3. Degree of protection:  RT III (wash-proof)
4. Standards/regulations: IEC 60664
5. Degree of pollution: 2
6. Overvoltage category: III
7. Mounting position: any
8. Assembly instructions: In rows with zero spacing

SPECIFICATIONS:

1. Nominal input voltage UN: 24 V DC
2. Input voltage range in reference to UN : 0.8 ... 1.2
3. Input voltage range: 19.2 V DC ... 28.8 V DC
4. Switching threshold "0" signal, voltage : ≤ 10 V
5. Switching threshold "1" signal voltage : ≥ 16 V
6. Typical input current at UN : 7 mA
7. Typical response time : 20 µs (at UN)
8. Typical turn-off time : 300 µs (at UN)
9. Transmission frequency : 300 Hz
10. Power dissipation for nominal condition: 0.5 W
11. Output voltage range: 3 V DC ... 33 V DC
12. Limiting continuous current : 3 A (see derating curve)
13. Maximum inrush current : 15 A (10 ms)
14. Voltage drop at max. limiting continuous current: ≤ 150 mV
15. Output circuit: 2-wire, floating
16. Type of protection: Reverse polarity protection

CLASSIFICATIONS:

eCl@ss:

1. eCl@ss 4.0: 27371102
2. eCl@ss 4.1: 27371102
3. eCl@ss 5.0: 27371001
4. eCl@ss 5.1: 27371001
5. eCl@ss 6.0: 27371604
6. eCl@ss 7.0: 27371604
7. eCl@ss 8.0: 27371604
8. eCl@ss 9.0: 27371604

ETIM:

1. ETIM 2.0: EC001504
2. ETIM 3.0: EC001504
3. ETIM 4.0: EC001504
4. ETIM 5.0: EC001504
5. ETIM 6.0: EC001504

UNSPSC:

1. UNSPSC 6.01: 30211916
2. UNSPSC 7.0901: 39121542
3. UNSPSC 11: 39121542
4. UNSPSC 12.01: 39121542
5. UNSPSC 13.2 : 39121542

RELATED DOCUMENTS:

1. Datasheet.

PARAMETRS:

1. Width: 5 mm
2. Height: 28 mm
3. Depth: 15 mm

PACKAGE INCLUDES:

1. 1 X  Phoenix Contact Solid State Relay OPT-24DC/ 24DC/ 2 (2966595)
