Phoenix Contact: Signal duplicator- MINI MCR-SL-UI-2I (2864794)

SKU
MD-00474
PKR137,200.00
Quantity: 0

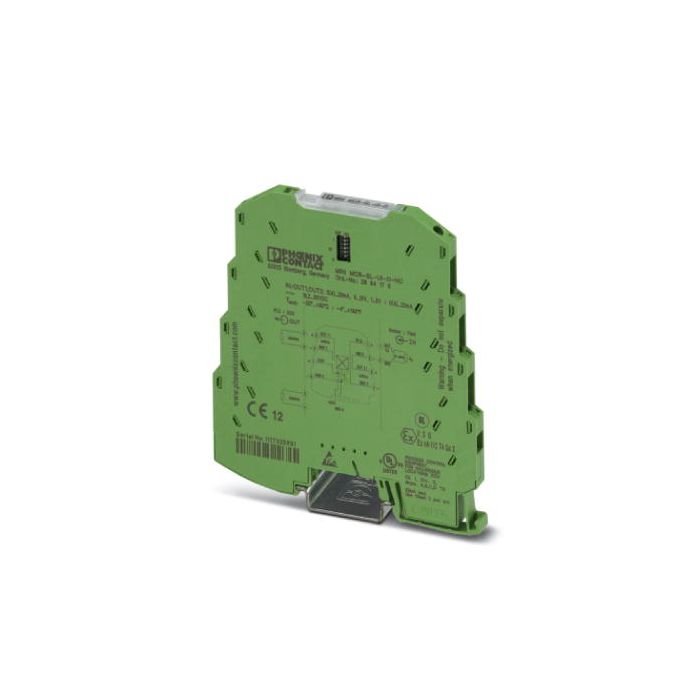

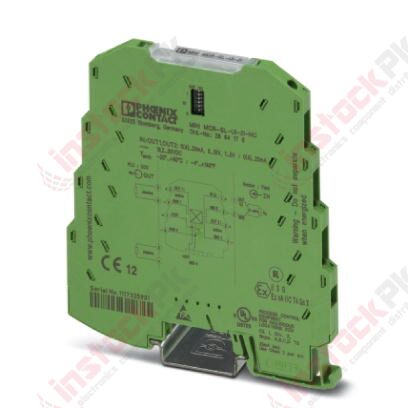

Phoenix Contact Signal duplicator- MINI MCR-SL-UI-2I (2864794)

The 6.2 mm wide configurable 4-way isolating amplifier MINI MCR-SL-UI-2I-... is used for electrical isolation, conversion, amplification and filtering of standard signals.On the input side, the analog standard signals 0...20 mA, 4...20 mA, 0...10 V or 1...5V can be selected, on the output side there are two current outputs that can be set independently of one another with a 0...20 mA-, or 4...20mA signal, electrically isolated (4-way isolation).

The DIP switches, which can be accessed on the side of the housing, can be used to configure the input and output signal ranges.Power (19.2 V DC to 30 V DC) can be supplied through connection terminal blocks on the modules or in conjunction with the DIN rail connector.

FEATURES:

  1. No. of channels: 2
  2. Maximum transmission error: ≤ 0.2 % (of final value)
  3. Transmission error, typical: < 0.1 %
  4. Maximum temperature coefficient: < 0.01 %/K
  5. Temperature coefficient, typical: < 0.004 %/K
  6. Limit frequency (3 dB): approx. 35 Hz
  7. Protective circuit: Transient protection
  8. Electrical isolation: Basic insulation according to EN 61010
  9. Degree of pollution: 2
  10. Rated insulation voltage: 50 V AC/DC
  11. Test voltage, input/output/supply: 1.5 kV (50 Hz, 1 min.)
  12. Electromagnetic compatibility            Conformance with EMC directive
  13. Noise emission: EN 61000-6-4
  14. Noise immunity: EN 61000-6-2 When being exposed to interference, there may be minimal deviations.
  15. Housing material: PBT
  16. Assembly instructions: The T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715.

SPECIFICATIONS:

  1. Nominal supply voltage: 24 V DC
  2. Supply voltage range: 19.2 V DC ... 30 V DC
  3. Max. current consumption: < 30 mA (at 24 V DC incl. load)
  4. Power consumption: < 600 mW
  5. Number of inputs: 1
  6. Configurable/programmable: Yes, preconfigured
  7. Voltage input signal: 0 V ... 10 V,1 V ... 5 V
  8. Current input signal: 0 mA ... 20 mA,4 mA ... 20 mA
  9. Max. input voltage: 30 V
  10. Max. input current: 50 mA
  11. Input resistance of voltage input: approx. 100 kΩ
  12. Input resistance current input: approx. 50 Ω

CLASSIFICATIONS:

eCl@ss:

  1. eCl@ss 4.0: 27210120
  2. eCl@ss 4.1: 27210120
  3. eCl@ss 5.0: 27210120
  4. eCl@ss 5.1: 27210120
  5. eCl@ss 6.0: 27210120
  6. eCl@ss 7.0: 27210107
  7. eCl@ss 8.0: 27210120
  8. eCl@ss 9.0: 27210120

ETIM:

  1. ETIM 2.0: EC001485
  2. ETIM 3.0: EC001485
  3. ETIM 4.0: EC001485
  4. ETIM 5.0: EC002653

UNSPSC:

  1. UNSPSC 6.01: 30211506
  2. UNSPSC 7.0901: 39121008
  3. UNSPSC 11: 39121008
  4. UNSPSC 12.01: 39121008
  5. UNSPSC 13.2 : 39121008

RELATED DOCUMENTS:

  1. DataSheet

ADVENTAGES:

  1. Power supply possible via the foot element (TBUS)
  2. Highly-compact isolating amplifier for electrical isolation, conversion, amplification, filtering, and duplication of standard analog signals
  3. Duplication of a standard analog signal on two current outputs
  4. 4-way isolation
  5. Up to 8 signal combinations can be configured using DIP switches

PARAMETERS:

  1. Depth: 102.5 mm
  2. Width: 6.2 mm
  3. Height: 93.1 mm

PACKAGE INCLUDES:

  1.  1 x Phoenix Contact Signal duplicator- MINI MCR-SL-UI-2I (2864794)
Part Number NA
Weight (KG) 0.100000
Manufacturer phoenix contact
Packing Unit 1 Piece
GTIN 2864794
Weight per Piece (excluding packing) 100
Custom tariff number 85437090
