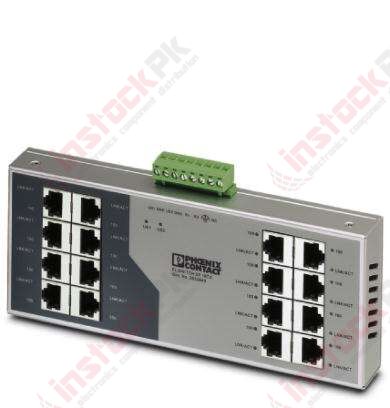

Phoenix Contact - Industrial Ethernet Switch - FL SWITCH SF 16TX - 2832849
SKU
MD-01197
PKR96,350.00
Quantity: 0
Ethernet Switch, 16 TP RJ45 ports, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), autocrossing function
Category: Phoenix Contact
Dimensions
| Width | 205 mm |
|---|---|
| Height | 94.3 mm |
| Depth | 30 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above mean sea level) |
Interfaces
| Interface 1 | Ethernet (RJ45) |
|---|---|
| No. of ports | 16 (RJ45 ports) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission speed | 10/100 Mbps |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status |
| Interface 4 | Potential-free signaling contact |
| Connection method | Plug-in/screw connection via COMBICON |
Function
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
|---|---|
| Additional functions | Autonegotiation |
| Status and diagnostic indicators | LEDs: US1, US2 (redundant voltage supply), link and activity per port |
| Signal contact control voltage | 24 V DC (typical) |
Network expansion parameters
| Cascading depth | Network, linear, and star structure: any |
|---|---|
| Maximum conductor length (twisted pair) | 100 m |
Supply voltage
| Supply voltage | 24 V DC (redundant) |
|---|---|
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Supply voltage range | 18.5 V DC ... 30.2 V DC |
| Typical current consumption | typ. 300 mA (at US = 24 V DC) |
General
| Mounting type | DIN rail |
|---|---|
| Type AX | Block design |
| Net weight | 586.9 g |
| Housing material | Aluminum |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Vibration (storage/transport) | 5g, 150 Hz, in acc. with IEC 60068-2-6 |
| Free from substances that could impair the application of coating | In acc. with VW specification |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Part Number | 2832849 |
|---|---|
| Weight (KG) | 0.620000 |
| Manufacturer | phoenix contact |
| Packing Unit | 1 Piece |
| Weight per Piece (excluding packing) | 620 G |
| Custom tariff number | 85176200 |
