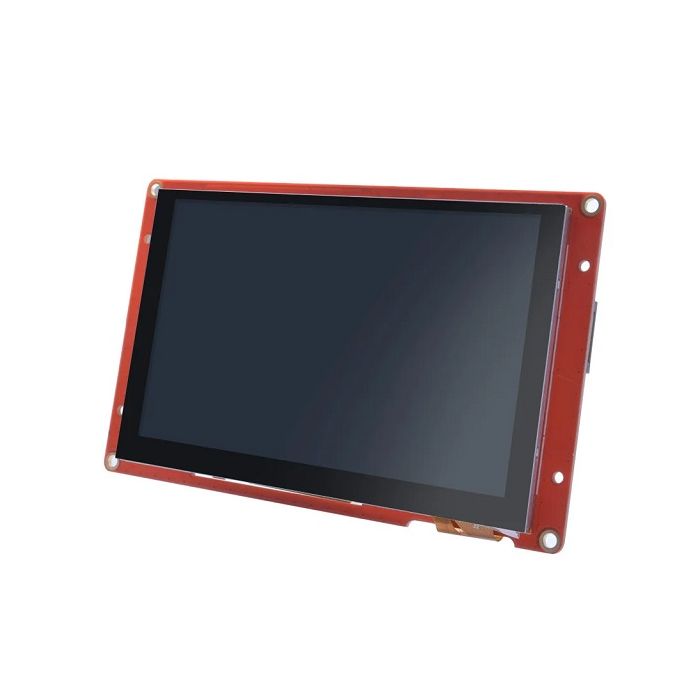

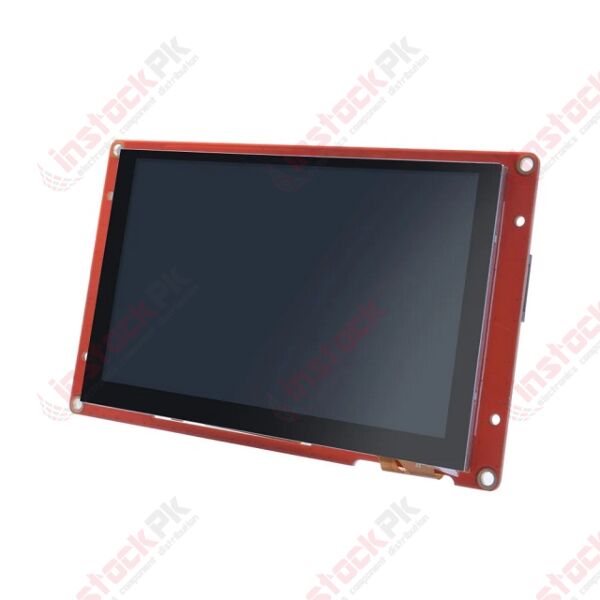

Nextion: Intelligent Series HMI Touch IPS 5" Display Screen - NX8048P050-011 R/C

As low as PKR22,500.00
Quantity: 4


Nextion is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enrich user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effect, component Move and Drag .etc.

Package include: Nextion NX8048P050-011R HMI Display*1, XH2.54 4P wire*1, power supply test board*1.
Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Nextion Models

Nextion Type Intelligent Series
Nextion Models NX8048P050-011R (5.0 inch resistive touchscreen without enclosure)


  Data Description
Color 65K 65536 colors 16 bit 565, 5R-6G-5B
Layout size 136.9mm(L)×84mm(W)×5.8mm(H) NX8048P050-011R
Visual Area (V.A.) 120.7mm(L)×75.8mm(W)
Active Area (A.A.) 108.00mm(L)×64.80mm(W)
Resolution 800×480 pixel Also can be set as 800×480
Touch type Resistive
Touches > 1 million
Backlight LED
Backlight lifetime (Average) >30,000 Hours
Brightness  300nit 0% to 100%, the interval of adjustment is 1%
Weight 130g

Electronic Characteristics

  Test Conditions Min Typical Max Unit
Operating Voltage   4.65 5 6.5 V
Operating Current VCC=+5V, Brightness is 100% 220 mA
SLEEP Mode 170 mA
Power supply recommend:5V, 1.0A, DC

Working Environment & Reliability Parameter

  Test Conditions Min Typical Max Unit
Working Temperature 5V, Humidity 60% -20 25 70 °C
Storage Temperature   -30 25 85 °C
Working Humidity 25°C 10% 60% 90% RH

Interfaces Performance

  Test Conditions Min Typical Max Unit
Serial Port Baudrate Standard 2400 9600 921600 bps
Output High Voltage (TXD) IOH=1mA 3.0 5.0 Vin V
Output Low Voltage(TXD) IOL=-1mA   0.1 0.2 V
Input High Voltage(RXD)   3.0 5.0 Vin V
Input Low Voltage(RXD)   -0.7 0.0 1.3 V
Serial Port Mode 3.3V/5.0V TTL
Serial Port 4Pin_2.54mm
USB interface NO
SD card socket Yes (FAT32 format), support maximum 32G Micro SD Card
* presence of *.tft file on microSD: socket is exclusive to upgrade Nextion firmware/HMI design
* Intelligent Series only: see Instruction Set / Editor Guide for microSD card runtime usage
Extended IO 8 Digital extended GPIO
IO0-IO7 support input, output and component binding event
* IO pin / ports are not exclusive, limit current draw to 1mA recommended
IO6-IO7 support PWM
RTC built-in RTC support (Battery type: CR1220)

Vin: the input voltage of power supply

Memory Features

Memory Type Test Conditions Min Typical Max Unit
FLASH Memory Store fonts and images     120 MB
User Storage EEPROM     1024 BYTE
RAM Memory Store variables     512 KB
Instruction Buffer Instruction Buffer     4096 BYTE

Audio Features

Speaker Parameter Min Typical Max Unit
Power 0.5 1.5 W
Audio Connector Type:1.25T-2-2A (1.25mm pitch 2-pin housing)

* NX8048P050-011R do not have speaker in the package.

Part Number NX8048P050-011 R/C
Manufacturer Nextion
Weight (KG) 0.100000
Display Size 5.0 inch
Display Resolution (Pixels) 800 x 480
Aspect Ratio 16:10
Ports NA
Screensize NA
Contrast Ratio NA
Product Availability In Stock
