Measurement Computing: Voltage Measurement DAQ HAT for Raspberry Pi, 16-bit, 100 kS/s - MCC128
SKU
MD-01750
PKR 69,500.00
Voltage Measurement DAQ HAT for Raspberry Pi with 8 SE/4 DIFF analog inputs, 16-bit resolution, variable gains, and up to 100 kS/s sample rate
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
- Buy 3 for PKR 66,025.00 each and save 5%
Related Products
Category: Accessories & Parts

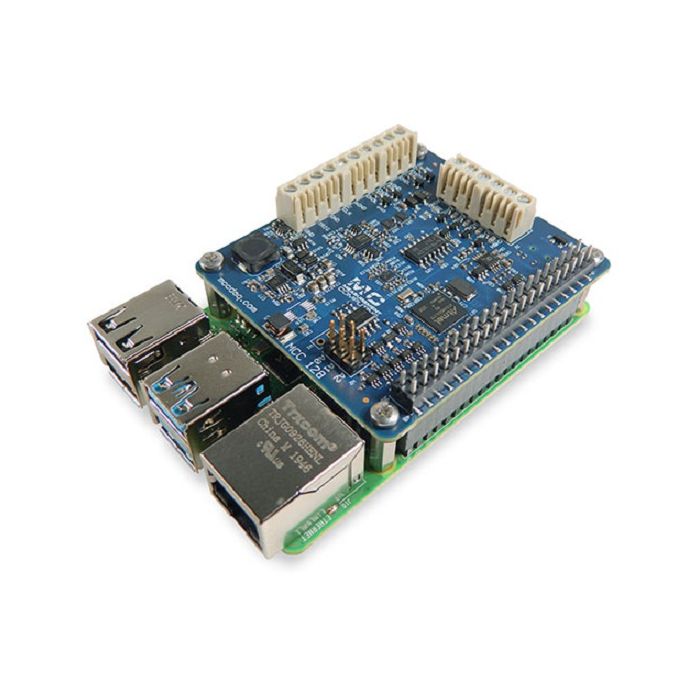

The MCC 128 DAQ HAT provides 8 SE/4 DIFF channels of analog voltage measurement for Raspberry Pi based data acquisition / data logger systems. It features 16-bit resolution and multiple analog input ranges, ideal for making precision measurements.
The MCC 128 maximum sample rate is 100 kS/s per board for taking single point or waveform voltage measurements. Up to eight MCC 128 devices can be stacked - providing up to 64 channels of data and a maximum throughput of 320 kS/s.
All MCC DAQ HATs provide easy-to-use C/C++® and Python™ open-source libraries and examples allowing you to take reliable, quality measurements quickly.
NOTE: Raspberry Pi is not included with the MCC 128.
| ANALOG Input | ||||
| Channels | Resolution | Max Sample Rate | ||
| 8 SE/4 DIFF | 16-bit | 100 kS/s | ||
| Sampling | Ranges | Isolation | ||
| Multiplexed | ±10 V, ±5 V, ±2 V, ±1 V | — | ||
| ANALOG Output | ||||
| Channels | Resolution | Speed | ||
| — | — | — | ||
| Digital I/O | ||||
| Channels | Counter/Timers | Encoder | ||
| — | — | — | ||
| Software | Power | |
| OS Support | Drivers | Power |
| Linux®, Raspbian® | DAQ HAT Library™ | Provided by Rpi |
| Part Number | MCC128 |
|---|---|
| Manufacturer | Measurement Computing Corporation |
| Product Availability | Available on Demand |
