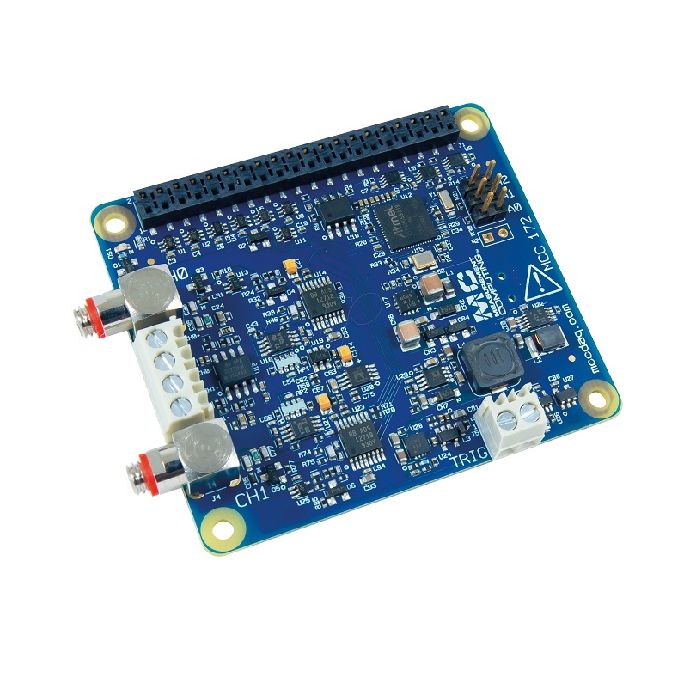

Measurement Computing: IEPE Measurement DAQ HAT for Raspberry Pi, 24-bit - MCC172
PKR 178,000.00
Only 1 left
SKU
MD-01946
IEPE measurement DAQ HAT for Raspberry Pi with 2 simultaneous inputs, 24-bit resolution, 51.2 kS/s/ch sample rate and 1 digital input.
KEY HIGHLIGHTS
The MCC 172 is a two channel DAQ HAT for making sound and vibration measurements from IEPE sensors like accelerometers and microphones. It features a 24-bit A/D per channel and a maximum sample rate of 51.2 kS/s/Ch. Up to eight MCC HATs can be stacked onto one Raspberry Pi allowing users to create high-channel count, multifunction solutions of different signal types.
All MCC DAQ HATs include easy-to-use C/C++® and Python™ open-source libraries and examples for taking reliable, quality measurements quickly.
NOTE: Raspberry Pi is not included with the MCC 172.
| Analog Input | |||
| Channels | Resolution | Max Sample Rate | Sampling |
| 2 IEPE | 24-bit | Up to 51.2 kS/s/ch | Simultaneous |
| Isolation | SNR | THD | SFDR |
| — | 100 dB Typ. | -93 dB Typ. | 120 dBFS Typ. |
| Digital I/O | |||
| Channels | Counter/Timers | Tachometer | |
| 1 | — | — | |
| Software | Power | |
| OS Support | Drivers | Power |
| Linux®, Raspbian® | DAQ HAT Library™ | Provided by RPi |
| Part Number | MCC172 || 149645B-01L |
|---|---|
| Manufacturer | Measurement Computing Corporation |
| Weight (KG) | 0.050000 |
| Product Availability | In Stock |
