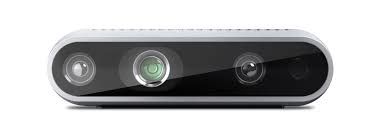

Intel: RealSense Stereo Depth Camera D435
The RealSense™ D435 offers the widest field of view of all our cameras, along with a global shutter on the depth sensor that is ideal for fast moving applications.
Slightly USED with USB Cable (No Trypod)
The RealSense™ depth camera D435 is a stereo solution, offering quality depth for a variety of applications. Its wide field of view is perfect for applications such as robotics or augmented and virtual reality, where seeing as much of the scene as possible is vitally important. With a range up to 10m, this small form factor camera can be integrated into any solution with ease, and comes complete with our RealSense SDK 2.0 and cross-platform support.
Combined solution for development & productizationThe D435 continues our commitment to developing cutting-edge vision sensing products. Combining a RealSense module and vision processor together into a small form factor yields a solution ideal for both development and rapid product creation. Paired with highly customizable software, the D435 provides a low cost solution that is lightweight and powerful, enabling development of next-generation sensing solutions that can understand and interact with their surroundings. |
 |
 |
Ideal for low light and wide field of viewThe combination of a wide field of view and global shutter sensor on the D435 make it the preferred solution for applications such as robotic navigation and object recognition. The global shutter sensors provide great low‑light sensitivity allowing robots to navigate spaces with the lights off. |
Complete suite simple integrationDepth camera D435 is part of the RealSense™ |
 |
 |

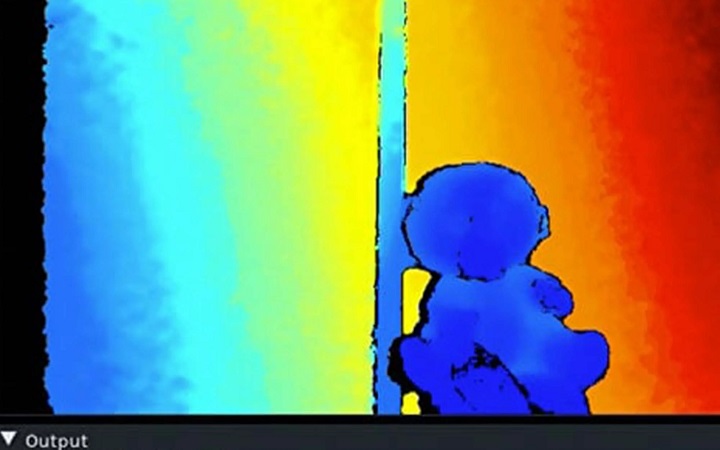

On-chip calibration in secondsRealSense SDK 2.0 now provides an on-chip self-calibration option for your D400 stereo camera. This allows camera calibration in less than 15 seconds without the need for specialized targets. Hassle free! |
Tech Specs
Features |
|
Use environment: |
Indoor/Outdoor |
Image sensor technology: |
Global Shutter |
Ideal Range: |
.3 m to 3 m |
Depth Technology: |
Stereoscopic |
Minimum Depth Distance (Min-Z) at Max Resolution: |
~28 cm |
Depth Accuracy: |
<2% at 2 m |
Depth Field of View (FOV): |
87° × 58° |
Depth Output Resolution: |
Up to 1280 × 720 |
Depth Frame Rate: |
Up to 90 fps |
RGB Frame Rate: |
30 fps |
RGB Frame Resolution: |
1920 × 1080 |
RGB Sensor Technology: |
Rolling Shutter |
RGB Resolution and Frame Rate: |
1920 × 1080 at 30 fps |
RGB Sensor FOV (H x V): |
69° × 42° |
RGB Sensor Resolution: |
2 MP |
Camera Module: |
RealSense Module D430 + RGB Camera |
Vision Processor Board: |
RealSense Vision Processor D4 |
Form Factor: |
Camera Peripheral |
Length x Depth x Height: |
90 mm × 25 mm × 25 mm |
Connectors: |
USB‑C* 3.1 Gen 1* |
Mounting Mechanism: |
– One 1/4‑20 UNC thread mounting point. |
| Part Number | D435 |
|---|---|
| Manufacturer | Intel® |
| Weight (KG) | 0.200000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
