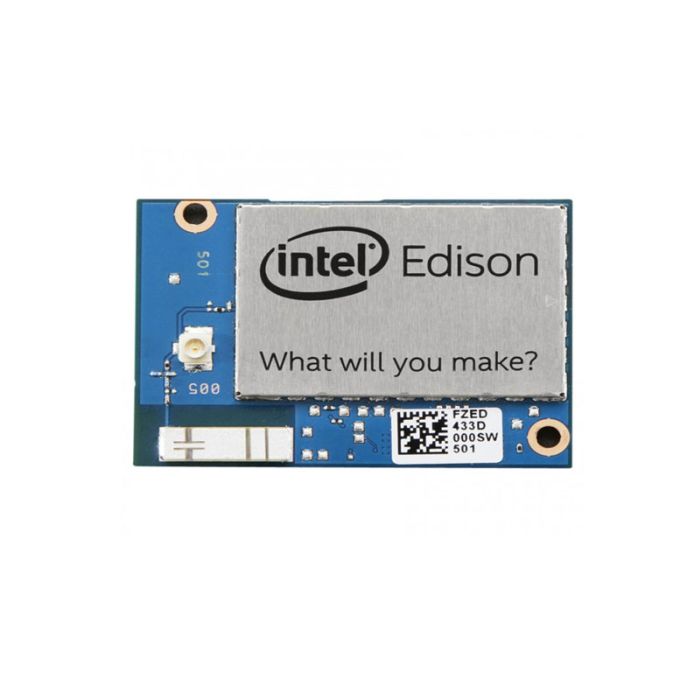

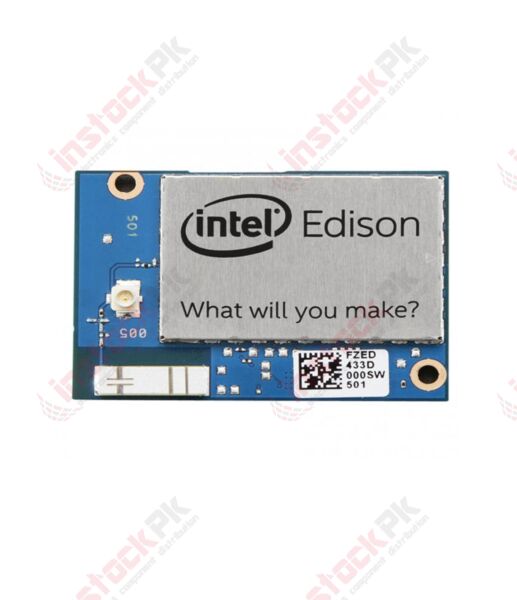

Intel Edison Compute Module (IoT)

This is a compact computing platform that's small by design so you can easily integrate it into projects. It's primarily designed for "Internet of Things" projects and is pretty powerful for its small size. This has a bunch of features that makes it appealing for makers of all skill levels.It uses a 22 nm Intel (SoC) that includes a dual core, dual threaded Intel Atom CPU at 500MHz and a 32-bit Intel Quark microctroller which runs at 100 MHz. It's a lot of power for a board that's about the size of an LED Matrix.

FEATURES:

1. Bluetooth and Wi-Fi connectivity
2. Kernel image based on Linux kernel 3.10.17
3. U-boot second stage bootloader
4. It supports 40 GPIOs
5. Intel cloud connectivity middleware
6. Dual Core Atom CPU  500MHz
7. Single Core Quark MCU 100MHz
8. RAM: 1GB LPDDR3 POP Memory (2 channel 32bits 800MT/sec)
9. Flash Storage: 4GB eMMC (v4.51 spec)
10. WiFi: Broadcom 43340 802.11 a/b/g/n; Dual-band (2.4 and 5GHz); On board antenna or external antenna (see various configurations)
11. Bluetooth: BT 4.0 + 2.1 EDR
12. Support for more than 30 industry-standard I/O interfaces via a 70-pin connector
13. Support for Yocto Linux, Arduino, Python, Node.js, and Wolfram

SPECIFICATIONS:

1. Input: 3.3V - 4.5V
2. Output: 100mA ,3.3V and 100mA ,1.8V
3. No Radios: 13mW
4. Bluetooth: 21.5mW
5. WiFi: 35mW
6. SD Card - 1 Interface
7. UART - 2 Controllers (1 full flow control, 1 RX/TX)
8. I2C - 2 Controllers
9. SPI - 1 Controller with 2 chip selects
10. I2S - 1 Controller
11. GPIO - Additional 12 (with 4 capable of PWM)
12. USB 2.0 - 1 OTG Controller
13. Clock Output - 32kHz, 19.2MHz

PHYSICAL DIAGRAM:

RELATED DOCUMENTS:

1. User Guideline.

PACKAGE INCLUDES:

1. 1 X Intel Edison Compute Module (IoT)
