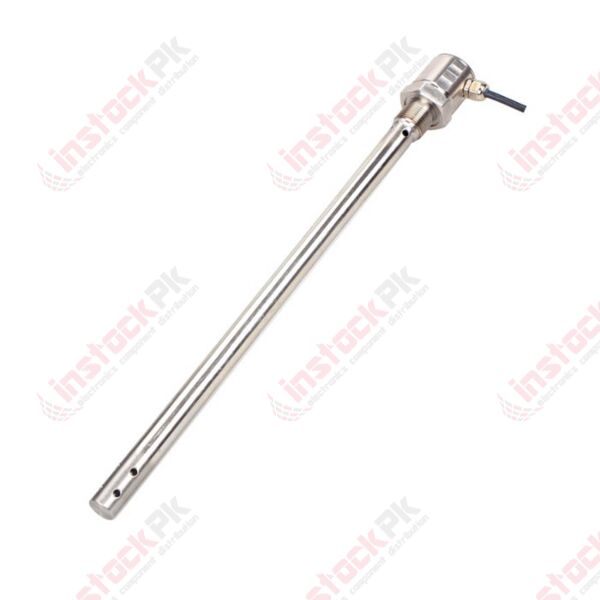

Holykell - Fuel Level Sensor DUT-E 485 (HPT621)
PKR 46,500.00
SKU
MD-00516
- Buy 2 for PKR 27,200.00 each and save 42%
- Buy 5 for PKR 26,900.00 each and save 42%
- Buy 25 for PKR 25,100.00 each and save 46%
HPT621 smart capacitance liquid level sensor is the customized sensor meter for precise measuring of the liquid level of automobile,sealed tanker,truck fuels tanks,locomotives tank and oil depots etc.
HPT621 smart capacitance liquid level sensor is the customized sensor meter for precise measuring of the liquid level of automobile,sealed tanker,truck fuels tanks,locomotives tank and oil depots etc.The whole sensor is free of any mobile or elastic part and is featured with the good impact resistance,convenient installation,high reliability,high precision and stable performance.HPT621support local renew calibrate zero and span by two calibiration wires,it can be only installed on various occasions require precise level measuring of gasoline,diesel,water and hydraulic oil etc,but also be application for measuring of various non-coductive liquids.
FEATURES:
- Accuracy: <+o.5%F.S
- High stability and reliability
- Precise linear and temperature compensation.
- Support local Zero and SPAN calibiration
- Adjustable damp output time
- Strong interference resistance
- Strong shock resistance
- Surge, over-current and polarity resistant design
- Applicable for various liquids
SPECIFICATIONS:
|
Model |
HPT621 Series |
|||
|
Pressure Range: |
0-100 mm ~ 1800 (mm) |
|||
|
Probe Diameter: |
16 mm (standard) |
|||
|
Resolution: |
0.01 mm |
|||
|
Blind Zone: |
Standard type is 6~15 mm, Min blind is 6 mm by customized. |
|||
|
Stability: |
Standard: 0.01%F.S/5 years, Max: 0.02%F.S/5years |
|||
|
Working Temp: |
-30~85℃ standard type,-40℃~125℃, -50 to +250 ℃ are customized. |
|||
|
Storage Temp: |
-50℃~125℃ |
|||
|
Medium compatible: |
Various media compatible with the 304/316 stainless steel |
|||
|
Electronic Wire: |
2 Wires |
3 Wires |
4-5 Wires |
4-5 Wires |
|
Output: |
4-20 mA |
0-5V (standard); 1-5V; 0.5-4.5V; 0-10V |
RS485 |
RS232 |
|
Power Supply: |
11~33 V dc |
12VDC or 11~33 V dc |
11~33 V dc |
11~33 V dc |
|
Process connect port: |
G1/2’’ male, M20*1.5 male, Flanges 2.5’’… (by customized) |
|||
|
Response time: |
First time starting time≈2s; working status≤200 ms |
|||
|
Medium compatible: |
Diesel, gasoline, water and others fuel or liquid is customized |
|||
|
Accuracy: (Linearity; Hysteresis; Repeatability) |
≤ ±1.0%F.S; ≤ ±0.5%F.S;high accuracy Optional |
|||
HOW TO USE:
RELATED DOCUMENTS:
APPLICATIONS:
HPT621 capacitance analog fuel level sensor is the customized sensor meter for precise measuring of the oil level of automobile oil tanks, tankers, trucks, locomotives and oil depots, etc.In addition, it can be used for conductive medium measuring on occasions with quite poor conditions, quite serious electromagnetic interference, or dramatic stirring.
PACKAGE INCLUDES:
- 1 X Fuel Level Sensor DUT-E 485 (Model-HPT621)
| Part Number | HPT621 |
|---|---|
| Weight (KG) | 0.050000 |
| Manufacturer | Holykell |
| Voltage (Min) | 10V |
| Voltage (Max) | 32V |
| Power | NA |
| Display Resolution (Pixels) | NA |
| Frequency | NA |
| Output Type | Analog |
| Range | 0-100 mm ~ 1800 (mm) |
| Temperature Range (Min) | -40°C |
| Temperature Range (Max) | 125°C |
| Measurement Time | 1ms |
| Sensor Type | Fuel Level Sensor |
| Baud Rate | NA |
| Interface | RS232, RS485 |
| Diameter | NA |
| Size (mm) | NA |
