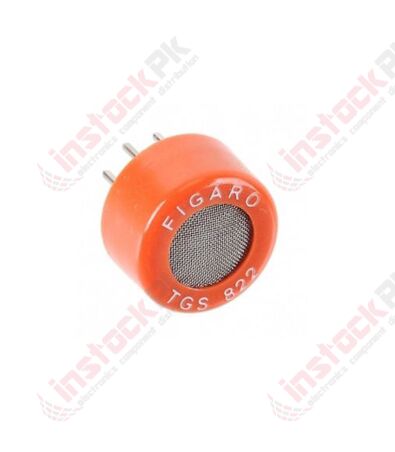

Figaro Carbon Monoxide Gas Sensor TGS 822

The sensing element of Figaro gas sensors is a tin dioxide (SnO2) semiconductor which has low conductivity in clean air. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.

The TGS 822 has high sensitivity to the vapors of organic solvents as well as other volatile vapors. It also has sensitivity to a variety of combustible gases such as carbon monoxide, making it a good general purpose sensor.

FEATURES:

1. High sensitivity to organic solvent vapors such as ethanol
2. High stability and reliability over a long period
3. Long life and low cost
4. Uses simple electrical circuit
5. Detectable Gases: carbon monoxide, ammonia, sulfur dioxide, alcohol, petrol, etc. Suitable for smoke and alcohol detectors.

PHYSICAL DIAGRAM:

RELATED DOCUMENTS:

1. Figaro Gas Sensor TGS 822 Datasheet.

APPLICATIONS:

1. Breath alcohol detectors.
2. Gas leak detectors/alarms.
3. Solvent detectors for factories.

PACKAGE INCLUDES:

1. 1 X Figaro Carbon Monoxide Gas Sensor TGS 822
