Gas Pressure Sensor Transmitter Module 10KPa 20KPa XGZP6847
PKR 1,500.00
Only 1 left
SKU
MD-00244
- Buy 3 for PKR 1,425.00 each and save 5%
- Buy 10 for PKR 1,380.00 each and save 8%
XGZP6847 is a prefect silicon pressure sensor module offering a ratiometric analog interface for reading pressure over the specified full scale pressure span and temp.range.
XGZP6847 is a prefect silicon pressure sensor module offering a ratiometric analog interface for reading pressure over the specified full scale pressure span and temp.range.The XGZP6847 is fully calibrated and temperature compensated for offset,sensitivity,temperature and non-linearity, so XGZP6847 pressure sensor module satisfy the prefect repeatability,linearity, stability and sensibility,which can be applied directly in medical equipment, fitness machine,home electronics and other pneumatic devices etc.
FEATURES:
- MEMS Technology
- Gauge
- DIP package
- For non-corrosive gas or liquid
- Amplified and Calibrated.
APPLICATIONS:
- For Medical field, such as digital blooding pressure meter,breathing machine,oxygen generating equipment,monitor etc, medical instruments and device.
- For Automotive electronics field, such as tire pressure gauge, MAP sensor etc.
- For Other fields, such as environment monitoring,liquid level measurement,sport and fitness equipment,air bed,meteorology,other pneumatic device etc.
RELATED DOCUMENTS:
PACKAGE INCLUDES:

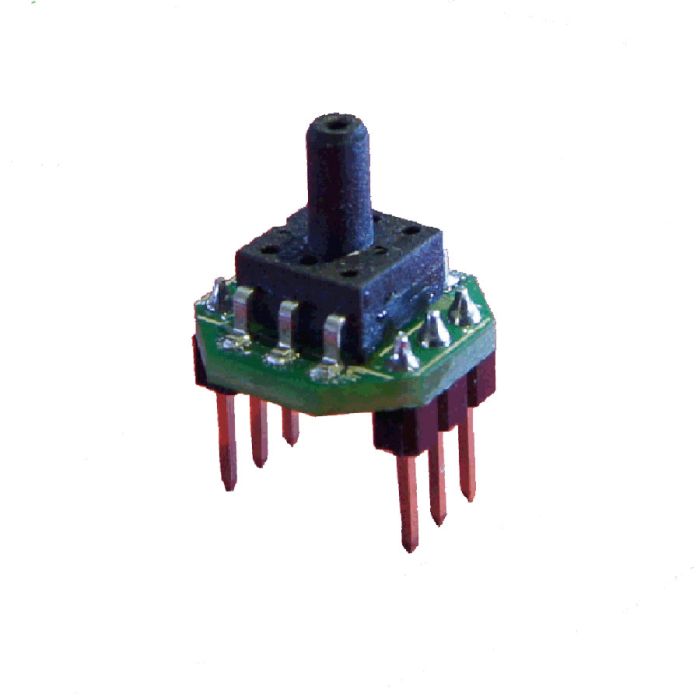

- 1 X Gas Pressure/Vacuum Sensor Transmitter Module (XGZP6847 FVC 0-10KPa)
| Part Number | XGZP6847 FVC 0-10KPa |
|---|---|
| Weight (KG) | 0.050000 |
| Manufacturer | Made in China |
| Product Availability | In Stock |
| Voltage (Min) | 0.5V |
| Voltage (Max) | 4.5V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | NA |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | Digital |
| Range | -100kPa～0kPa～10kPa…1000kPa |
| Temperature Range (Min) | -20°C |
| Temperature Range (Max) | 100°C |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | NA |
| Num of Pin's | 6 |
| Size (mm) | NA |
