FarmLabs: Form 2 Desktop SLA 3D Printer - Farm2 (Seller Refurbished)

SKU
3D-02125
PKR0.00
Quantity: 1

In-house Slightly Used Printer in 100% working condition, normal wear and tears on the regular use.

Professional 3D Printing, Powered By Lasers

Stereolithography (SLA) 3D printing uses a laser to cure solid isotropic parts from a liquid photopolymer resin.


Engineered For Precision. Designed for Reliability.

The Form 2 works as hard as you do so you can focus on developing innovative products and bringing your most creative ideas to life. 3D print strong, detailed models with stunning surface finish.

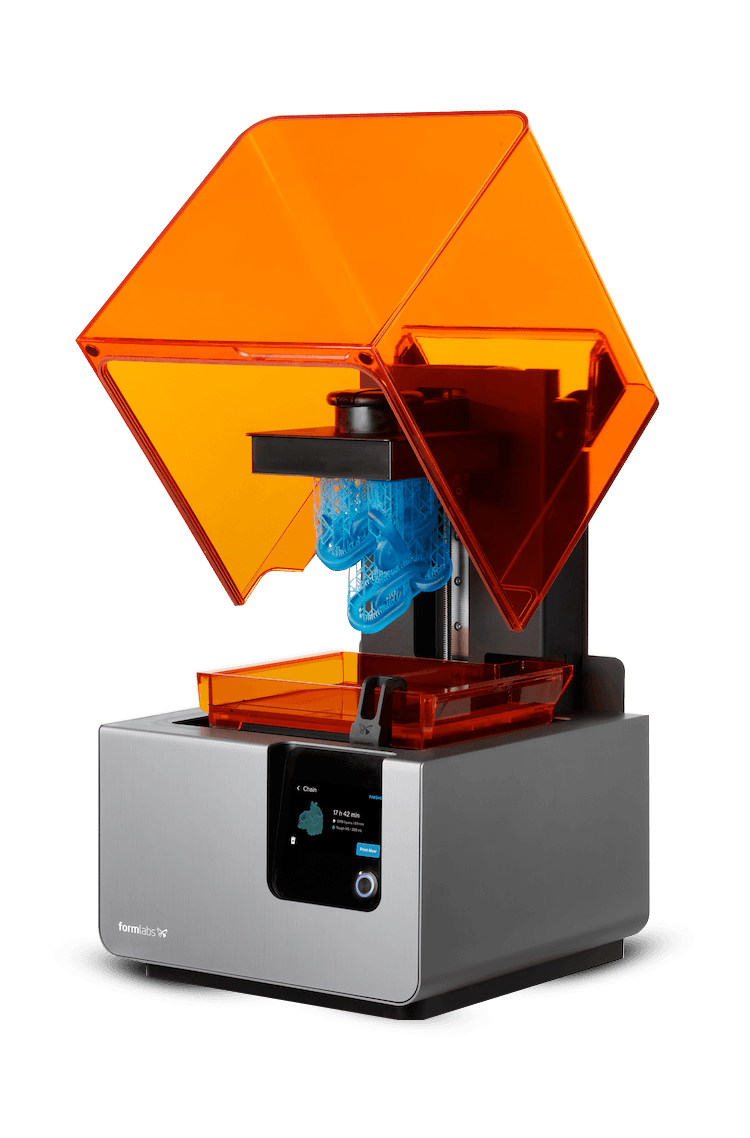

Formlabs Form 2
Formlabs - Materials - Resin cartridge

20+ Materials, Zero Hassle

Our integrated resin system makes material management easy and allows for clean operation. Switch between materials in seconds by replacing the cartridge. The Form 2, Form 3+, and Form 3L automatically recognize the resin type, configure settings, and allow you to keep track of resin supplies from your Dashboard.

Prepare and Manage Prints With Smarter Software

Get your 3D model ready in minutes with PreForm's automatic and manual print preparation tools. Manage printers and monitor supply levels remotely using your online Dashboard.

Prepare and Manage Prints with Preform Software




A Proven, Intuitive Workflow

From print preparation to post-processing, you can rely on a dependable, scalable fabrication workflow and focus on creating.

3D printing workflow - Step 1: Design
STEP 1

Design

Design your model in your regular CAD software and import an STL or OBJ file into our PreForm print preparation software. One-Click Print offers an option for automatically orienting, supporting, and laying out your 3D models.

STEP 2

Print

Send prints over WiFi, reprint previous jobs, and manage your print queue directly from our touchscreen interface. During printing, the peel mechanism, wiper, and heated resin tank create a consistent, reliable print process.

3D printing workflow - Step 2: Print
3D printing workflow - Step 3: Finish
STEP 3

Finish

For the best results and mechanical properties, all SLA parts require IPA rinsing and post-curing. Form Wash and Form Cure streamline and automate post-processing of Form 2 and Form 3+ prints. Consistently produce high-quality results with less time and effort.



Form 2 Tech Specs



Hardware

Dimensions

Weight
35 × 33 × 52 cm
13.5 × 13 × 20.5 in
13 kg
28.5 lbs
Operating Temperature Auto-heats to 35° C
Auto-heats to 95° F
Self-heating Resin Tank
Power Requirements 100–240 V
1.5 A 50/60 Hz
65 W
Laser Specifications EN 60825-1:2007 certified
Class 1 Laser Product
405nm violet laser
250mW laser
Connectivity
Optical Path
Printer control
Wifi, Ethernet and USB
Protected
Interactive Touch-screen with Push-button





Printing Properties



Technology
Peel Mechanism
Resin Fill System
Stereolithography (SLA)
Sliding Peel Process with wiper
Automated
Build Volume 145 × 145 × 175 mm
5.7 × 5.7 × 6.9 in
Layer Thickness (Axis Resolution)

Laser Spot Size (FWHM)
25, 50, 100 microns
0.001, 0.002, 0.004 inches
140 microns
0.0055 inches
Supports Auto-Generated
Easily Removable

PreForm Software







System Requirements Windows 7 (64-bit) and up
Mac OS X 10.10 and up
OpenGL 2.1
4GB RAM
Hardware Requirements Formlabs Form 2 3D Printer
Features Simple print setup
Auto-orient for optimal print position
Auto-mesh repair
Auto-generation of supports
Rotation, scaling and duplication
Layer slicer for path inspection
.STL and .OBJ file input
.FORM file output

Finish Kit

Includes Finishing Tray
Scraper
Pre and Post-Rinse Tubs
Rinse Basket
Squeeze Bottle
Flush Cutters
Tweezers
Disposable Nitrile Gloves
PEC*PAD Wipes
Microfiber cloth
Removal Tool
Removal Jig

Data Sheets

Download safety and technical data sheets for all Formlabs materials.

Handling & Safety
Technical Data







Part Number Farm2
Weight (KG) 15.000000
Packing Unit 1 Piece
Product Availability In Stock
