Flashforge: Hunter – DLP 3D Printer for Dental Jewellery - 3D-FFG-HUNTER
The Hunter DLP Resin 3D Printer from Flashforge is an advanced digital light processing (DLP) 3D printer that takes advantage of additive manufacturing technology. It can create prints with layer resolutions of 12.5, 25, and 50 microns and prints from its aluminum resin tray with pre-installed vat film that supports multiple types of resin. Also featured is an 800 MHz Dual-Core processor, a Full HD 1080p light engine with a 405nm LED, a touchscreen LCD, support for .stl files that can be printed using wired USB, a USB flash drive, or Wi-Fi using FlashPrint software.
The FlashForge Hunter is a DLP (Digital Light Processing) 3D Printer, which allows the user to a print a 3D model in highly-detail. Photopolymer resin is adopted as a printing material for Hunter DLP 3D printer. As it can 3D print a whole layer of a 3D model at one time, the printing time is generally consumed less than that of the SLA 3D printer.

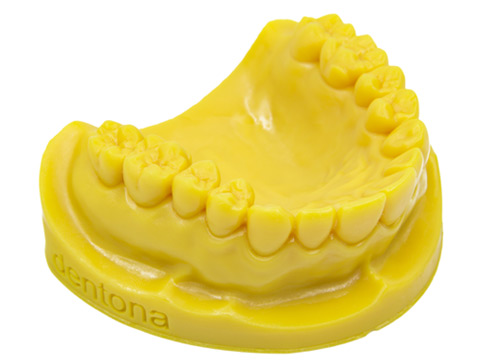

For dental model printingHunter DLP 3D printer is well suitable for stomatological digitized manufacturing. DLP 3D printing technology is integrated with the digital chain of dental diagnosis/treatment and dental product processing, which can effectively improve the efficiency and the quality of dentistry treatment. DLP printer Flashforge Hunter can print a variety of digitized dental models in full size and in required precision. Hunter DLP 3Dprinter also makes the stomatology digitized workflow more economical and more convenient
|
|

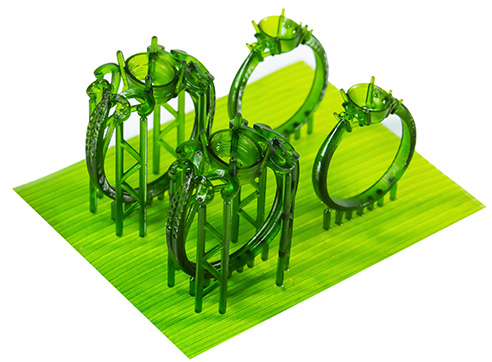

For jewelry pattern printingA prominent advantage of DLP printing is print precision. DLP resin printer escalates model precision to a further level. Hunter DLP printer becomes in better use for printing all kinds of jewelry model samples. A great helper for jewelry designers making proofs.
|
|
High qualitylight engine of HunterSelf-developed proprietary light engine built in Hunder DLP 3D printer.
|
|
Continual and stable
|
|

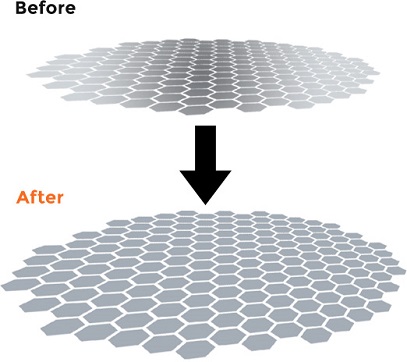

Uniform light intensity ofHunter DLP printerThe optical engine has undergone strict correction on light intensity uniformity, hence ensuring uniform light intensity in all parts of the print image.
|
|
DLP printer partsAluminium resin vat & FEP filmLonger lifespan & less maintenanceIt's easy to disassemble the resin vat and replace the FEP film. Longer lifespan of DLP resin printer parts assures less maintenance and greatly reduces the use cost.
|
|
Sturdy build platform ofDLP printer HunterCalibration free | easy to dis/assembleStrong build platform of DLP resin printer makes your print more easily. It is good for increasing printing speed and doing post treatment easily.
|
|
General Features
- Full HD 1080p light engine with a 405nm LED
- 800 MHz ARM Dual-Core processor
- Linear motion guide actuator for achieving a smoother printing surface
- Removable aluminum resin vat with pre-installed vat film
- Calibration-free build plate with quick replacement
- Touchscreen LCD for easy navigation
- Jewelry support mode provides more flexible support structures
- Printing modes with resin presets
- Grayscale and distortion correction algorithm for more detailed prints
- upport for multiple resin types (FH1100, FH1200, FH1400, and Detax Luxaprint 3D shell)
COMPATIBLE TO OF THIRD PARTY RESIN
FlashForge Hunter DLP 3D Printer is compatible with 3rd party 3D printing resins, so users can have more flexibility to try the different type of resin such as castable resin, tough resin, biocompatible resin etc. Therefore, Hunter DLP 3D Printer especially useful for making tough highly detailed engineering prototype, castable ring model, or even making the medical model.

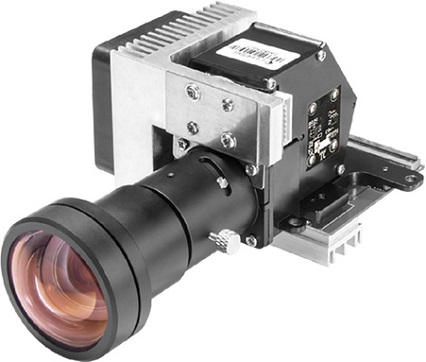

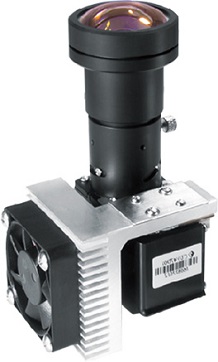

SELF-DEVELOPED LIGHT ENGINE
FlashForge Hunter DLP 3D printer uses the self-developed Full HD 1080p resolution light engine, which can ensure more stable LED intensity and better printing quality. Also, as Hunter DLP 3D printer adopts FlashForge’s self-developed light engine, the light engine can adjust to a particular wavelength (405nm LED) for 3D printing. This fine tune can best fit the printing process, which can lead to a better printing result.
LINEAR MOTION GUIDE ACTUATOR
industrial Z axis LM guide actuator module enables an accuracy of the micron, achieving smoother printing surface.
ALUMINIUM RESIN VAT FEP FILM
Easily remove resin vat for the change of material to ensure little material waste. Durable aluminium resin vat requires no maintenance. The long lasting FEP vat film can easily be replaced.

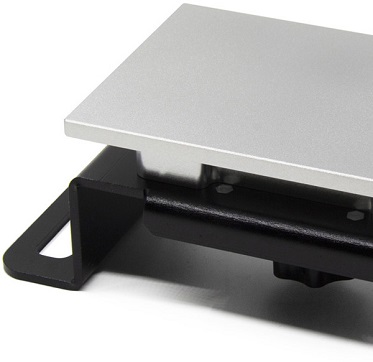

BUILD PLATE
The build plate can be replaced quickly and there is no need for calibration. That means faster printing speed and easier to do post-treatment.
TOUCH SCREEN
The simple and intuitive user interface that is super easy to use.
ADVANCED MAINBOARD DESIGN
Advanced architecture main board and self-developed proprietary light engine work together perfectly. Dual-core 800 MHz ARM processor ensures high-performance and better user experience. The mainboard is designed and made in a 10-layer high precision board, safeguarding EMC, the integrity and the stability of the projection signal.
TECHNICAL SPECIFICATIONS
3D Printer Model Name FlashForge Hunter 3D Printing Technology DLP (Digital Light Processing) Printing Size 120 × 67.5 × 150 mm (L x B xH) Z axis layer height 25/50 µm (0.025 / 0.05 mm) X-Y axis resolution 62.5 µm (0.0625 mm) Light source 405 nm LED; 50,000 hours life span 3D Printing Software FlashPrint 3D File format STL Connectivity USB Cable, USB Stick, Wi-Fi Printer dimensions 360 x 310 x 565 mm Printer weight 17.8 kg Power 100-240v, 50-60Hz, 1A 3D PRINTING SPECIFICATIONS Build volume (in liters) 1.215 Build volume (in millimeters) 120 × 67.5 × 150 mm Layer resolution Z: 25 / 50 microns (0.025 / 0.05 mm) | X-Y: 62.5 microns (0.0625 mm) Print technology Digital Light Processing (405 nm LED with 50,000 hours life span) CONNECTIVITY USB Yes Wi-Fi Yes SIZE & WEIGHT Product dimensions 360 x 310 x 565 mm Product weight 17.8 kg SOFTWARE File formats STL Included software FlashPrint
IN THE BOX
x1Hunter 3D Printerx1Photopolymer Resinx1Power Adapterx1Power Cablex1Rinse Bucketx1Softclothx1Vat Filmx1Vinyl Glovesx1Brushx1Metal scraper
x1Plastic scraperx1Quick Start Guide
Part Number | 3D-FFG-HUNTER |
---|---|
Weight (KG) | 18.000000 |
Packing Unit | 1 Piece |
Product Availability | In Stock |
