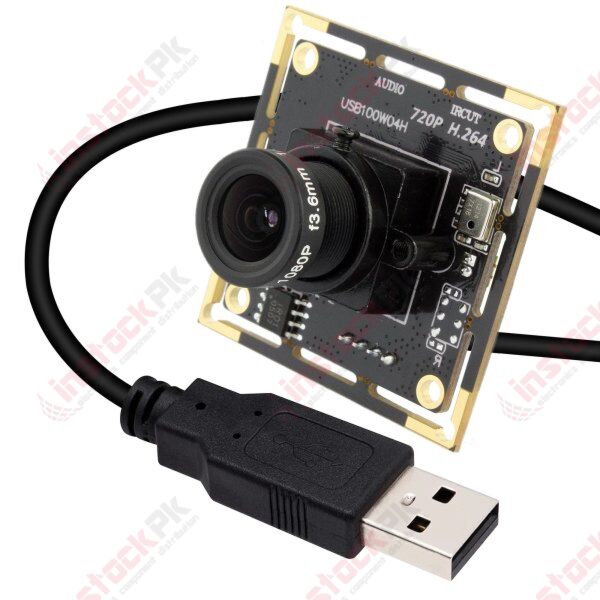

ELP: USB100W04H 720P HD USB Camera Module with Built-in Microphone & H.264 Hardware Compression
SKU
MD-02325
PKR 14,600.00
🔥 High Demand Allocation:
1 Units
⚠️ Limited Quantity Remaining
Categories: Camera Module, Camera
The ELP-USB100W04H is an industrial-grade, ultra-compact 1.0 Megapixel 720p HD USB camera module designed for seamless integration into embedded systems. Featuring an advanced OmniVision OV9712 CMOS sensor, this board delivers crisp high-definition video while maintaining low power consumption.
Equipped with dual H.264, MJPEG, and YUY2 compression formats, it offloads heavy video encoding burdens from your host system to ensure smooth, real-time 30fps streaming. The onboard digital microphone captures synchronized high-quality audio. Utilizing the standard UVC (USB Video Class) protocol, it provides absolute driver-free plug-and-play operation across Windows, Linux, Android, and macOS ecosystems. Its tiny 38x38mm form factor makes it perfect for robotics, medical equipment, ATMs, vending machines, and custom kiosks.
Key Marketing Bullets
- Advanced H.264 Compression: Delivers sharp images and accurate color profiles while saving valuable storage space and bandwidth.
- High Frame Rate Video: Streams real-time, fluid 720P HD video at a reliable 30 frames per second.
- Integrated Digital Audio: Built-in high-sensitivity microphone offers complete video and sound recording on a single board.
- Universal UVC Protocol: Complete plug-and-play functionality requires zero external driver installations.
- Ultra-Compact Footprint: Miniature 38x38mm board size can be modified to 32x32mm by removing the outer breakaway tabs.
Full Technical Specifications Table
| Feature / Param | Complete Technical Detail |
|---|---|
| Sensor Type | 1/4-inch CMOS OmniVision OV9712 Sensor |
| Max Resolution | 1 Megapixel (1280 x 720 pixels) |
| Pixel Size | 3.0µm x 3.0µm |
| Image Area | 3888µm x 2430µm |
| Compression Formats | H.264 / MJPEG / YUY2 (YUYV) |
| Supported Video Formats | H.264: 1280x720@30fps, 800x600@30fps, 640x480@30fps MJPEG: 1280x720@30fps, 800x600@30fps, 640x480@30fps YUY2: 1280x720@10fps, 640x480@30fps |
| Interface Port | USB 2.0 High Speed (4-pin 2.0mm pitch socket) |
| Default Lens | 3.6mm Fixed Focus (Optional M12 mounts supported) |
| Horizontal FOV | ~60° (using standard 3.6mm lens configuration) |
| Audio Interface | Onboard digital microphone capsule |
| Automation Features | Auto Exposure (AEC), Auto White Balance (AWB) |
| Operating Voltage | DC 5V (USB bus powered) |
| Operating Current | 120mA to 180mA |
| Board Dimensions | 38 mm x 38 mm (Cutout option to 32 mm x 32 mm) |
System Compatibility Matrix
- Windows: XP, Vista, 7, 8, 10, and 11 (UVC Compliant)
- Linux: Ubuntu, Debian, RedHat (with native UVC kernel support)
- Android: Android 4.0 or above (Requires OTG-capable host devices)
- Apple Mac OS: OS X 10.4.8 or later versions
- Embedded Hardware: Raspberry Pi, Jetson Nano, industrial PCs, smart kiosks
Logistics & Packaging Data
- Package Contents: 1x ELP USB Camera Board Module, 1x 1-Meter USB 2.0 Cable, 1x Manual.
- Unit Net Weight: ~10 grams (0.35 oz) without cables.
- Packaged Shipping Weight: ~68 grams (2.4 oz).
- Module Physical Dimensions: 1.50 x 1.50 x 0.91 inches (38 x 38 x 23 mm)
| Part Number | USB100W04H |
|---|---|
| Manufacturer | NA / Unknown |
| Weight (KG) | 0.020000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
