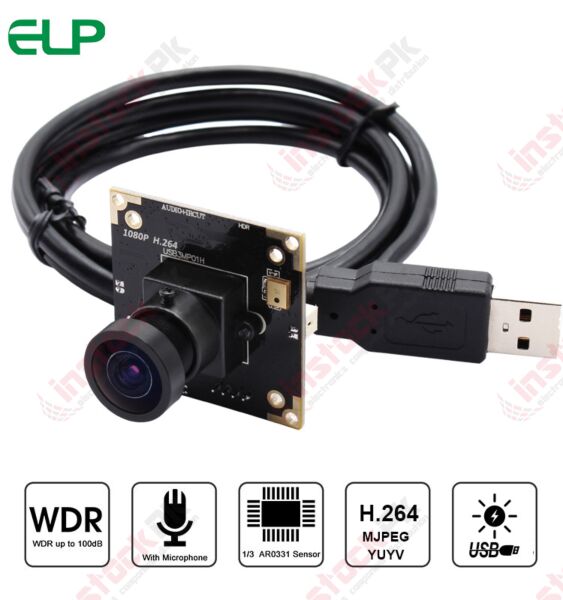

ELP USB3MP03H 3MP Wide Dynamic Range WDR USB Camera Module (AR0331 Sensor, H.264 UVC Plug-and-Play)
SKU
MD-02324
PKR 12,900.00
🔥 High Demand Allocation:
1 Units
⚠️ Limited Quantity Remaining
Categories: Camera Module, Camera
- 3-Megapixel Full HD: Captures crystal-clear high-definition images up to 2048 x 1536 pixels powered by an AR0331 CMOS sensor. [1]
- 100dB Wide Dynamic Range: Advanced WDR/HDR functionality handles harsh lighting, balancing dark spots and overexposed sunlight perfectly. [1]
- H.264 High-Efficiency Compression: Delivers high-quality real-time video streams at a lower bit rate, saving valuable network bandwidth and local storage. [1]
- UVC Driverless Compatibility: Hassle-free plug-and-play architecture designed for instant setup on Windows, Linux, Mac OS, and Android. [1, 2]
5. Long Description
Empower your specialized monitoring systems with the ELP-USB3MP03H 3-Megapixel WDR USB Camera Module. Engineered around a professional-tier 1/3-inch Aptina/Aptina AR0331 CMOS image sensor, this module achieves a true industrial Wide Dynamic Range (WDR) of up to 100dB. Whether deployed facing direct outdoor glare, headlights, or intense indoor backlighting, it retains vivid imagery without silhouetting or washing out details. [1, 2]
Hardware-Accelerated H.264 Coding
Unlike typical entry-level modules, this board integrates onboard H.264 compression alongside standard MJPEG. It processes heavy high-definition video feeds directly on the hardware chip, drastically reducing the CPU processing load on host systems like Raspberry Pi or low-power embedded PCs. [1, 2]
Zero-Driver UVC Architecture
Built for seamless system integration, the device conforms entirely to the USB Video Class (UVC) standards. It completely cuts out manual installation paths—simply plug the standard high-speed USB 2.0 interface into your operating ecosystem. It runs natively across industrial applications built on: [1, 2]
- Windows 7 / 8 / 10 / 11
- Linux with native UVC kernel support
- Mac OS X 10.4.8 or later versions
- Android 4.0 and higher mobile/embedded systems [1, 2, 3]
Optimized Embedded Deployment
Featuring the industrial dual-layout cut dimensions (38mm x 38mm / 32mm x 32mm), this high-reliability camera card slots smoothly into automated enclosures. It is widely chosen across fields like: [1]
- Automated license plate recognition (ALPR) and transit traffic systems.
- Bank ATMs, self-service checkout points, and kiosk terminals.
- Smart building video entry intercoms and security access panels.
- Precision medical diagnostic apparatus and drone vision systems. [1, 2, 3]
6. Technical Specifications Table
| Attribute | Value |
|---|---|
| Image Sensor | 1/3-inch Micron / Aptina AR0331 CMOS |
| Max Resolution | 3.0 Megapixel (2048 x 1536) |
| Dynamic Range | 100 dB (True Wide Dynamic Range) |
| Video Formats | H.264 / MJPEG / YUY2 |
| Video Performance | 30fps @ 1920x1080 (1080p Full HD) |
| Connection Interface | USB 2.0 High Speed Protocol |
| Protocol Type | USB Video Class (UVC) Driverless |
| Board Physical Size | 38mm x 38mm (Includes internal 32x32mm breakaway cuts) |
| Operating Voltage | DC 5V Input via standard USB lines |
| Part Number | USB3MP03H |
|---|---|
| Manufacturer | NA / Unknown |
| Weight (KG) | 0.050000 |
| Packing Unit | 1 Piece |
