Broadcom Dot Matrix Display Module HDSP-2131(5X7)

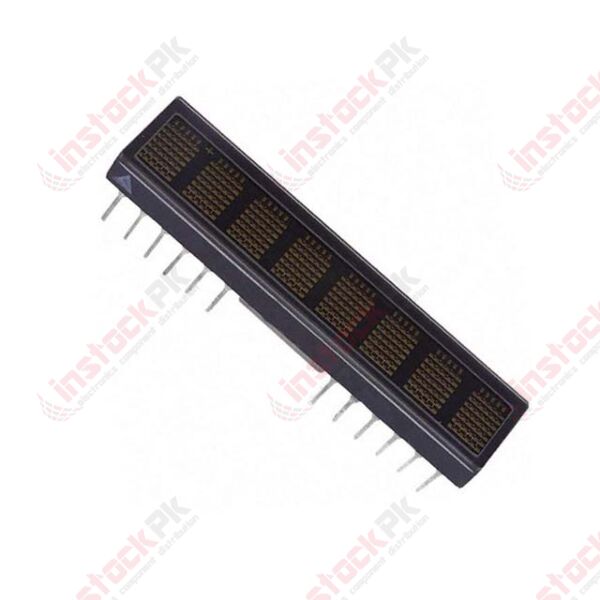

The HDSP-2131 (yellow), 5 x 7 dot matrix alphanumeric display Module. The 5.0 mm (0.2 inch) high character sare packaged in a standard 7.64 mm (0.30 inch) 32pin DIP. The on-board CMOS IC has the ability to decode 128 ASCII characters, which are permanently stored in ROM. In addition, 16 programmable symbols may be stored in an on-board RAM. Seven brightness levels provide versatility in adjusting the display intensity and power consumption. The HDSP-213x and HDSP-2179 are designed for standard microprocessor interface techniques. The display and special features are accessed through a bidirectional eight-bit data bus. These features make the HDSP-213x and HDSP-2179 ideally suited for applications where a hermetic, low power alphanumeric display is required.

SPECIFICATIONS:

1. Display Type: 5 x 7 Dot Matrix
2. Number of Digits: 8
3. Character Size: 2.85 mm x 4.83 mm
4. Illumination Color: Yellow
5. Wavelength: 585 nm
6. If - Forward Current: 300 mA
7. Vf - Forward Voltage: 5 V
8. Maximum Operating Temperature: + 85 C
9. Minimum Operating Temperature: - 55 C
10. Mounting Style: Through Hole
11. Brand: Broadcom / Avago
12. Luminous Intensity: 7.5 mcd
13. Operating Temperature Range: - 55 C to + 85 C

RELATED DOCUMENTS:

1. Datasheet.

PACKAGE INCLUDES:

1. 1 X Broadcom Dot Matrix Display Module HDSP-2131(5X7)
