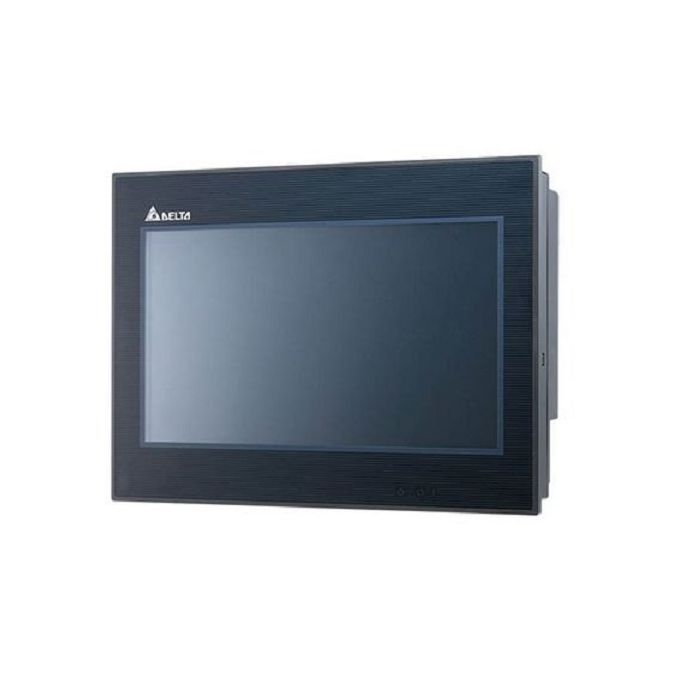

Delta: HMI LCD Wide Screen HMI Display 10.4" - DOP-W105B

SKU
MD-01781
PKR0.00
Quantity: 0

The Delta DOP-W series is a large HMI (human machine interface) that includes high resolution and a high brightness touchscreen in 10.4" (DOP-W105B), 12" (DOP-W127B) and 15" (DOP-W157B) sizes.

With the latest Cortex-A8 processor for up to 1GHz pulse wave, the Delta DOP-W Series delivers high performance and rapid response.

Its rugged and CE-certified aluminum enclosure protects from vibration and changing ambient temperatures. This series also features an IP65 waterproof front panel for harsh environments.

Built-in stereo speakers increase utility and flexibility. The DOP-W Series complies with CE and UL safety approvals and provides an efficient and competitive solution to meet customer needs for a wide range of high-end industrial automation applications.

Specifications
  • 10.4" (800 x 600 pixels) TFT LCD 65536 colors
  • 2 sets of COM ports, support RS232 / RS422 / RS485
  • Supports USB Host, direct connection to USB disk, printer and mouse
  • Supports SD card
  • Supports 2 Ethernet ports
  • Supports audio output (MP3, Wav files)
  • Supports video format: MPEG1, MPEG2, WMV
  • Touch screen complies with IP65
  • Supports horizontal / vertical display
  • PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7



Part Number DOP-W105B
Manufacturer DELTA Electronics
Weight (KG) 2.500000
Product Availability Available on Demand
