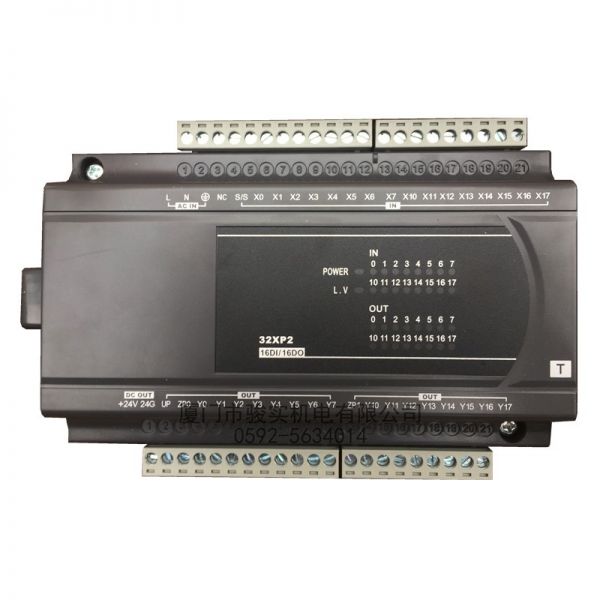

Delta: ES2/EX2 Series Digital I/O Module 16DI, 16DO - DVP32XP200R

SKU
MD-01778
PKR0.00
Quantity: 0

ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional.

Specifications

  • Program capacity: 16k steps
  • Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
  • Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
  • DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution
  • Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
  • New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
  • Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
  • Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta's AC motor drives
  • Password protection: Password for subroutine, user ID, restriction on trial times
  • Highly efficient instruction efficient instruction execution



Update 200 I/O extension points

LD instruction

MOV instruction

DMUL instruction

DEMUL instruction

ES2

1ms

0.54us

3.4us

11.4us

10.3us

ES

6ms

3.8us

18us

150us

55.4us

Note

Update I/O extension module

Basic instruction

16-bit data movement instruction

31-bit multiplication instruction

32-bit floating point multiplication

Part Number DVP32XP200R
Manufacturer DELTA Electronics
Weight (KG) 0.050000
Product Availability Available on Demand
