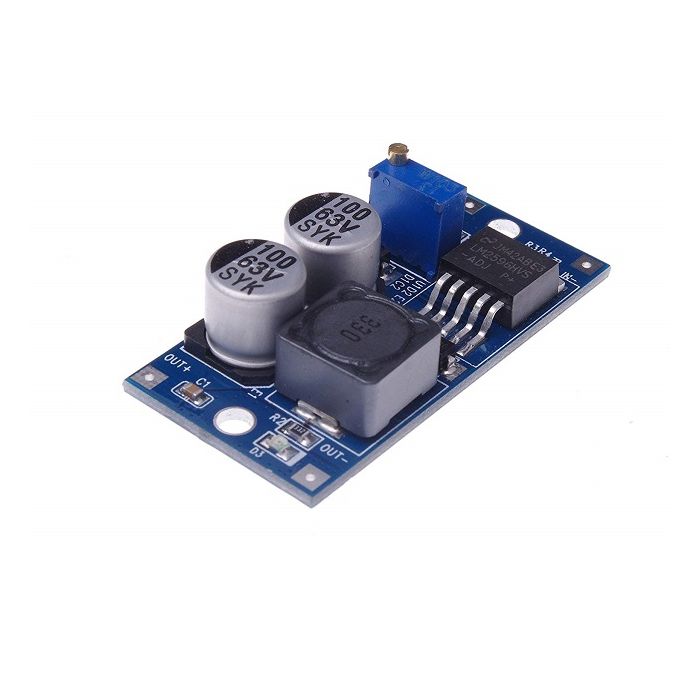

DC-DC Adjustable Step Down Voltage Regulator LM2596HV

Quantity: 5
  • Buy 3 for PKR712.50 each and save 5%
  • Buy 10 for PKR690.00 each and save 8%
The lm2596HVDCDC adjustable step-down power supply module is made of solid materials. Both input and output use 63V capacitors. (The description of the SW end: the input belt (SW- is turned off for high level) enable terminal, which is convenient for external control,itas anexternal switch.If you don't understand, the direct SW suspension is the channel and you don't need to care about the SW.)

Module parameters:

  • Module nature: non-isolated step-down regulated output
  • Input voltage range: 5V-55V (continuously below 50V)
  • Output voltage range: 1.25V-26V (continuously adjustable output default delivery )
  • Any choice between fixed output 1.25V-26V
  • Output current: rated current 2A, MAX 3A (with heat sink), if the output power is greater than 20W, it is recommended to add a heat sink
  • Conversion efficiency: MAX 92% (the higher the output voltage, the higher the efficiency)
  • Switching frequency: 150KHz
  • Minimum dropout voltage: 3V
  • Full load temperature rise: 40℃
  • Load Regulation: ±0.5%
  • Voltage regulation: ±0.5%
  • Dynamic response speed: 5% 200uS
  • Wiring method: welding
  • output with indicator light
  • IN+ input positive,
  • IN - input negative,
  • OUT+ output is positive,
  • OUT- output negative
  • Dimensions: L*W*H 50mm*25mm*14mm
Part Number LM2596HV
Manufacturer Made in China
Weight (KG) 0.030000
Packing Unit 1 Piece
Product Availability In Stock
