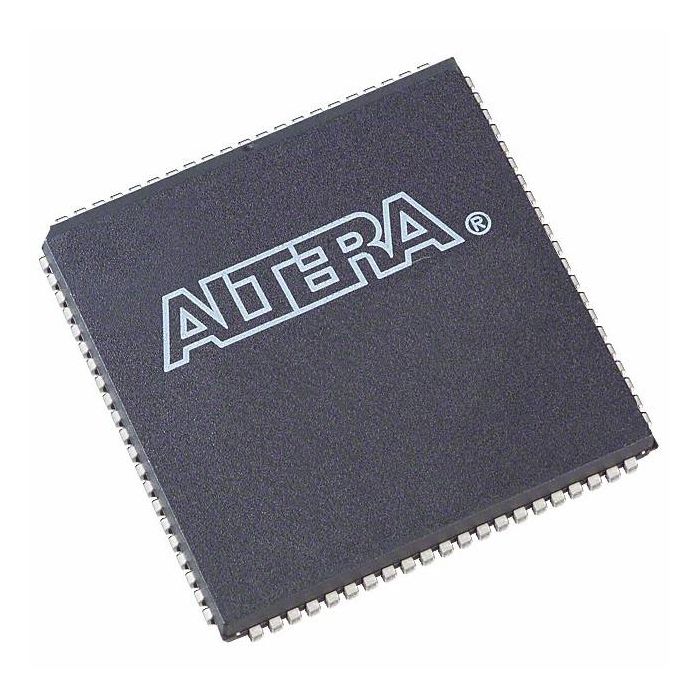

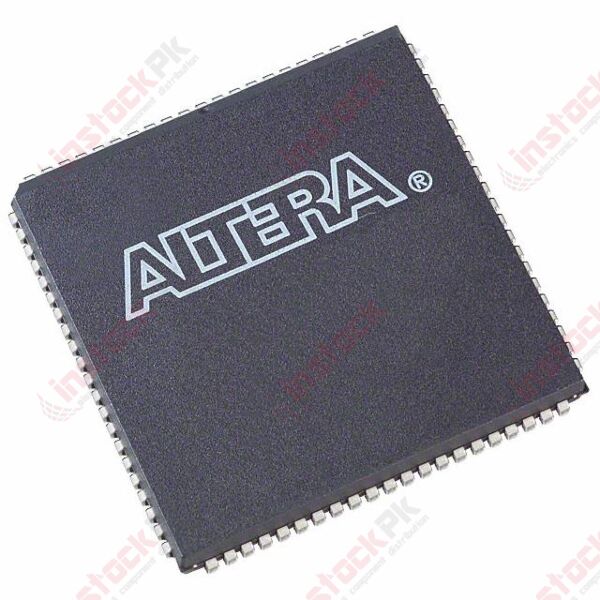

Altera - EEPROM Based Programmable Logic Device CPLD EPM7064SLC84-10

SKU
MD-01102
PKR2,750.00
Quantity: 0
Altera EEPROM Based Programmable IC EPM7064SLC84-10 (CPLD - MAX 7000)
  • Buy 5 for PKR2,550.00 each and save 7%
  • Buy 25 for PKR2,280.00 each and save 17%

FEATURES:

  • PLDs) based on second-generation MAX architecture.
  • 5.0-V in-system programmability (ISP) through the built-in IEEE Standard.
  • ISP circuitry compatible with IEEE Std. 1532.
  • Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices.
  • Built-in JTAG boundary-scan test (BST) circuitry in MAX7000S devices with 128 or more macro cells.
  • Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates.
  • 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies.

SPECIFICATIONS:

  • Product: MAX 7000nbsp;
  • Number of Macro cells: 64nbsp;
  • Number of Logic Array Blocks LABs: 4nbsp;
  • Maximum Operating Frequency: 151.5 MHz
  • Propagation Delay Max:nbsp;        6 nsnbsp;
  • Number of I/Os: 68 I/Onbsp;
  • Operating Supply Voltage: 5 Vnbsp;
  • Minimum Operating Temperature: 0 C
  • Maximum Operating Temperature: + 70 C
  • Package / Case: PLCC-84
  • Memory Type:EEPROM
  • Number of Gates: 1250

RELATED DOCUMENTS:

PACKAGE INCLUDES:

  • 1 X Altera EEPROM Based Programmable IC EPM7064SLC84-10 (CPLD - MAX 7000)
Weight (KG) 0.050000
Manufacturer Altera/Intel
Power NA
Current (A) NA
Temperature Range (Min) 0°C
Temperature Range (Max) 70°C
Memory NA
SMD_Package PLCC-84
