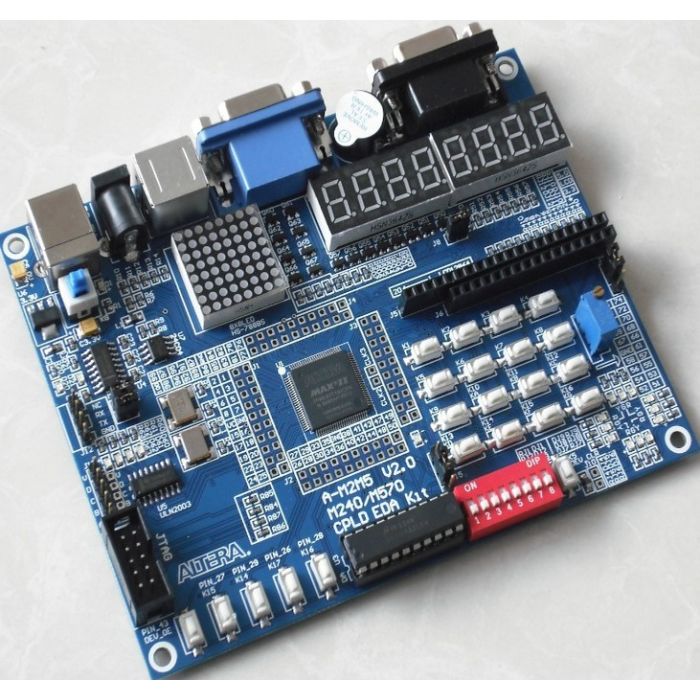

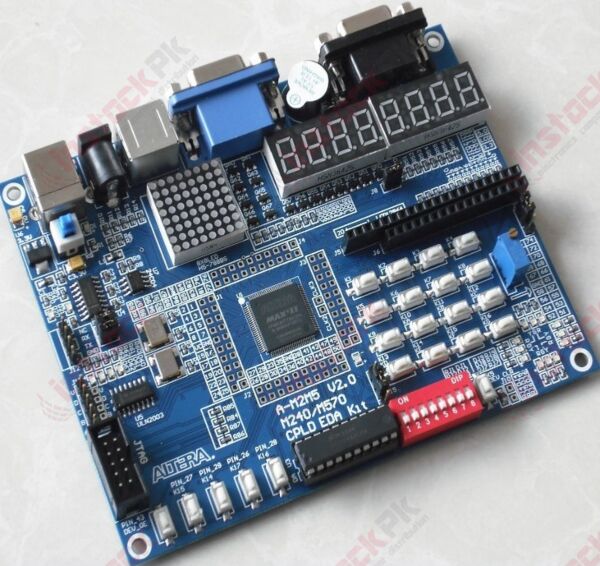

ALTERA EPM240T100C5N CPLD Development Board

FEATURES:

1. A PS / 2 keyboard connector can learn PS / 2 keyboard protocol, with a digital tube or LED lights display the results.
2. A standard RS232 serial port can learn to send and receive, with a digital tube or LED lights display the results.
3. A VGA interface can learn VGA display principle, display computer monitor (desktop use)
4. A buzzer can learn to drive a speaker, of course, this is simple.
5. 58-bit dynamic digital tube (experiment much you can do)
6. A 8X8 LED dot matrix:You can display characters, numbers or letters of the alphabet
7. A LCD12864 interfaces can learn the principles of Chinese characters display
8. A LCD1602 interfaces can learn the principles of character display
9. A DAC0832, learning DA conversion principle, the digital signal into an analog signal

SPECIFICATIONS:

1. CPLD uses the MAX II family EPM240T100C5N
2. A PS / 2 keyboard connector
3. A standard RS232 serial port
4. A VGA port
5. A buzzer
6. 68-bit dynamic digital tube
7. A 8X8 LED dot matrix
8. A LCD12864 Interface
9. A LCD1602 Interface
10. 5 separate key input
11. 8-way DIP switch input
12. 12 LED light diode
13. 1 road DA output conversion, DAC0832
14. Small stepper motor drive circuit
15. EEPROM AT24C04
16. External input 5V power supply can be powered by USB

PACKAGE INCLUDES:

1. 1 X ALTERA EPM240T100C5N CPLD Development Board
