Altera Cyclone FPGA Core EP3C16 Board - OpenEP3C16-C

SKU
MD-00917
PKR18,400.00
Quantity: 2
Altera Cyclone FPGA CoreEP3C16 Board

FEATURES:

CoreEP3C16 is an FPGA core board that features an EP3C16Q240C8N device onboard, supports further expansion.

  1. onboard Serial Configuration Device EPCS16SI8N
  2. integrated FPGA basic circuit, such as clock circuit
  3. onboard nCONFIG button, RESET button, 4 x LEDs
  4. all the I/O ports are accessible on the pin headers
  5. onboard JTAG debugging/programming interface
  6. 2.00mm header pitch design, suitable for being plugged-in your application system

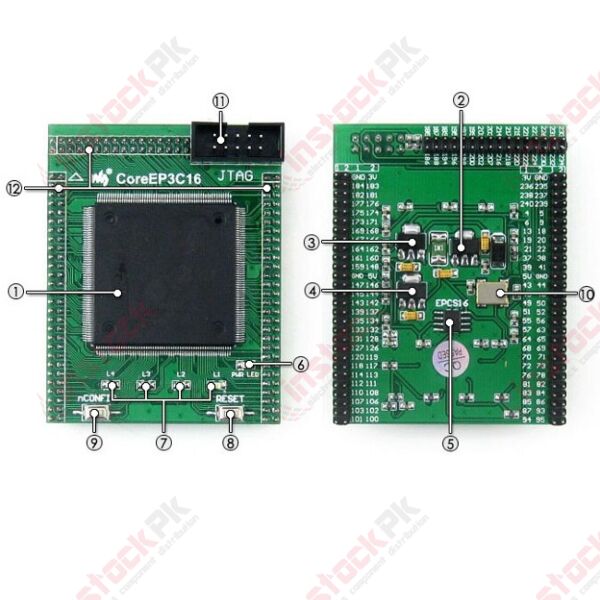

SPECIFICATIONS:

 pin configurations

  1. EP3C16Q240C8N:the ALTERA Cyclone III FPGA device which features:
  2. Debugging/Programming: supports JTAG
  3. AMS1117-3.3, 3.3V voltage regulator
  4. AMS1117-2.5, 2.5V voltage regulator
  5. AMS1117-1.2, 1.2V voltage regulator
  6. EPCS16, onboard serial FLASH memory, for storing code
  7. Power indicator
  8. LEDs
  9. Reset button
  10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  11. 50M active crystal oscillator
  12. JTAG interface: for debugging/programming
  13. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

RELATED DOCUMENTS:

  1.  Usefull Documents.

PACKAGE INCLUDES:

  1. 1 X Altera Cyclone FPGA CoreEP3C16 Board
  2. 1 X Software CD
Part Number OpenEP3C16-C
Weight (KG) 0.060000
Manufacturer Waveshare
Product Availability In Stock
Voltage (V) 1.15~3.3
Power NA
Processor EP3C16Q240C8N
Frequency 50MHz
Memory 504 KB
Operating System Xilinx ISE 12 - supports Winxp/Win7, doesn't support Win8
Temperature Range (Min) -40°C
Temperature Range (Max) NA
Bluetooth Interface No
Interface NA
Size (mm) NA
