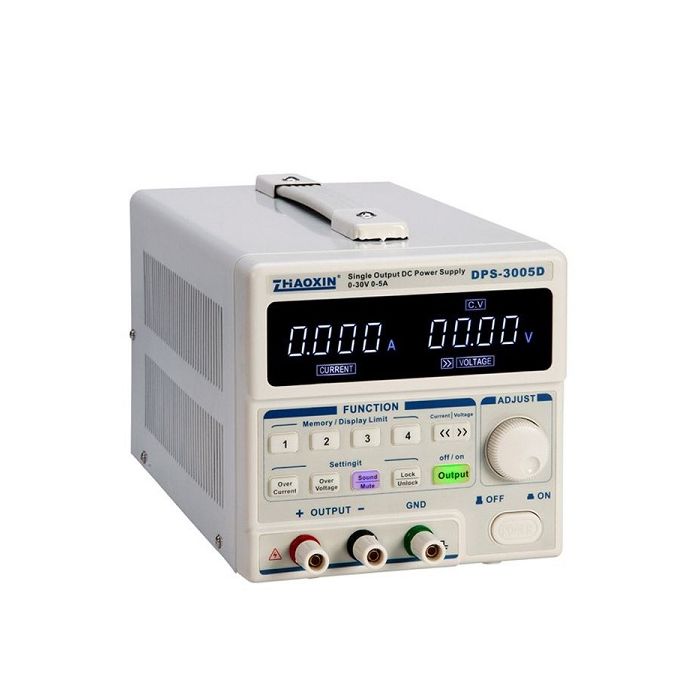

Adjustable Programmable DC power supply DPS-3005D (0~30V/0~5A)

FEATURES:

1. Response and high accuracy when compared with linear power supply.
2. Output voltage and output current between 0 to rated value is continuously adjustable.
3. Constant voltage and constant current can automatic conversion.
4. Overload and reverse polarity protection keep power supply and its loads safe from unexpected conditions.
5. LED digital display output voltage and output current.
6. Cooling fan is connected with temperature sensor. Its can reduce the fan speed automatically when the internal temperature or load decreases to prevent the additional noise.
7. Single Output.
8. Has A / mA converter to display the current function and four voltage and current display.
9. Dual LED show voltage (red), current (blue).
10. With 110V-220V input voltage conversion function.
11. Current-limit protection methods, current limit can be adjusted.
12. Plastic surface box, novel and beautiful appearance.

SPECIFICATIONS:

1. Model : DPS-3005D
2. Output Voltage: 0~30V
3. Output Current: 0~5A
4. Input Voltage: AC220V ± 10% 50Hz
5. AC Input Fuse: 1.5A
6. Operating Temperature: -10°C -40°C
7. Current/Voltage display Accuracy: 4LED Display
8. Display Resolutions:0.001V,0.001A
9. Input voltage: 220V ± 10% 50Hz ~ 60Hz
10. Ripple and Noise: ≤1mVrms (RMS)
11. Load stability: ≤0.01% + 2mV
12. Regulation accuracy: ≤0.01% + 2mV
13. Output terminals: three output terminals.
14. Protection: over-current protection.

PACKAGE INCLUDES:

1. 1 X Adjustable Programmable DC power supply DPS-3005D (0~30V/0~5A)
