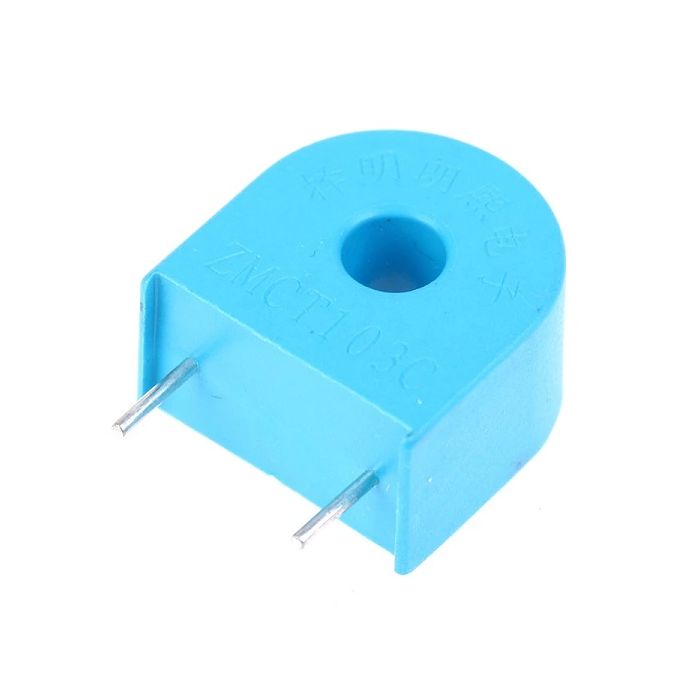

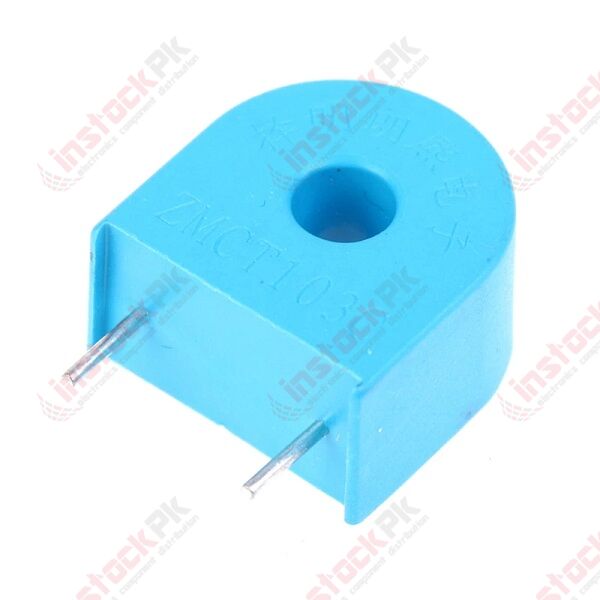

Current Transformer 5A/5mA CT - ZMCT103C

A current transformer (CT) is used for measurement of alternating electric currents. When current in a circuit is too high to apply directly to measuring instruments, a current transformer produces a reduced current accurately proportional to the current in the circuit, which can be conveniently connected to measuring and recording instruments. A current transformer isolates the measuring instruments from what may be very high voltage in the monitored circuit.

Features:

1) Small size
2) High accuracy, and good consistency,for current and power measurement
3) ZMCT103C can measure the AC current upto 5 amps
4) Output proportional to AC current

Specifications:

1) Model ZMCT103C (class A)
2) Rated input current 5A
3) Rated output current 5mA
4) Turns ratio 1000:01:00
5) Phase angle error ≤15′
(input 5A,sampling resistor 50Ω)
6) Linear range 0~10A(sampling resistor 50Ω)
7) Linearity ≤0.2%5%dot~120%dot
8) Permissible error -0.2%≤f≤+0.2%
(input 5A,sampling resistor50Ω)
9) Isolation voltage 4500V
10) Application Precise measurement of current and power
11) Installation PCB mounting(Pin Length>3mm)
12) Operating temperature -40ºC~+85ºC
