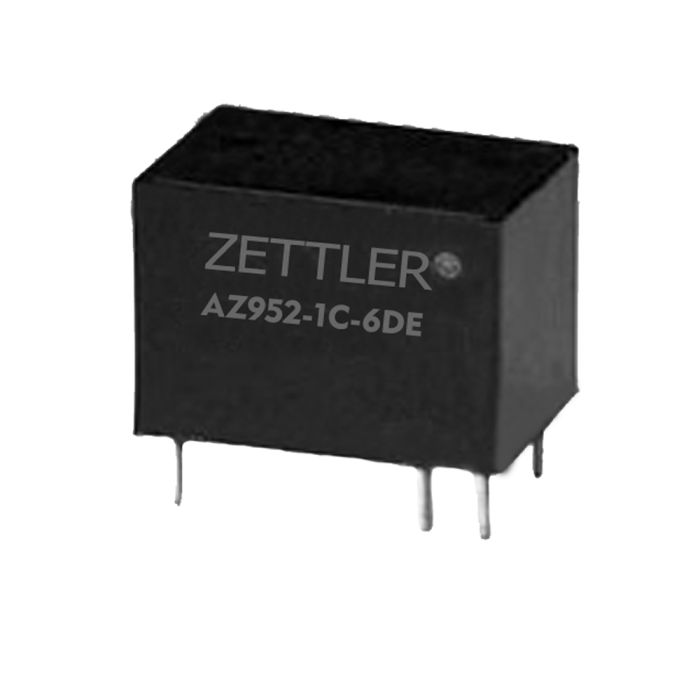

Zettler AZ952-1C-6DE Relay 6VDC; 1A; 1A/125VAC; 1A/30VDC

FEATURES:

1. Subminiature size for high density packaging
2. Coil sensitivity to 116 mW
3. Extremely low cost
4. Coils to 24 VDC
5. Epoxy sealed for automatic wave soldering
6. 1 Amp, 3 Amp & 5 Amp contacts
7. Life expectancy to 10 million operations
8. UL, CUR file E43203

SPECIFICATIONS:

1. Part No:AZ952-1C-6DE
2. Type:Power Relay
3. DC Coil Voltage: 6 V
4. Maximum AC Voltage Rating: 300 V
5. Family:  AZ952
6. Relay Construction: Non-Latching
7. Contact Material: Silver/Gold Plated
8. Maximum DC Voltage Rating: 150 V
9. Coil Current: 75 mA
10. Termination Style: PC Pin
11. Coil Resistance:  80 Ohm.5 VDC
12. Contact Arrangement: SPDT
13. Maximum Current Rating: 1 A
14. Pin_Count: 6
15. Maximum Pick-Up Voltage: 4
16.  Voltage: >0.6 VDC
17. Mounting:Through Hole
18. Maximum Power Rating:30,125 W|VA
19. Operating Temperature:-25 to 55 °C
20. Package Type:   DIP
21. Operate Time: 5

RELATED DOCUMENTS:

1. Zettler AZ952-1C-6DE Relay DataSheet

PACKAGE INCLUDES:

1. 1 X Zettler AZ952-1C-6DE Relay
