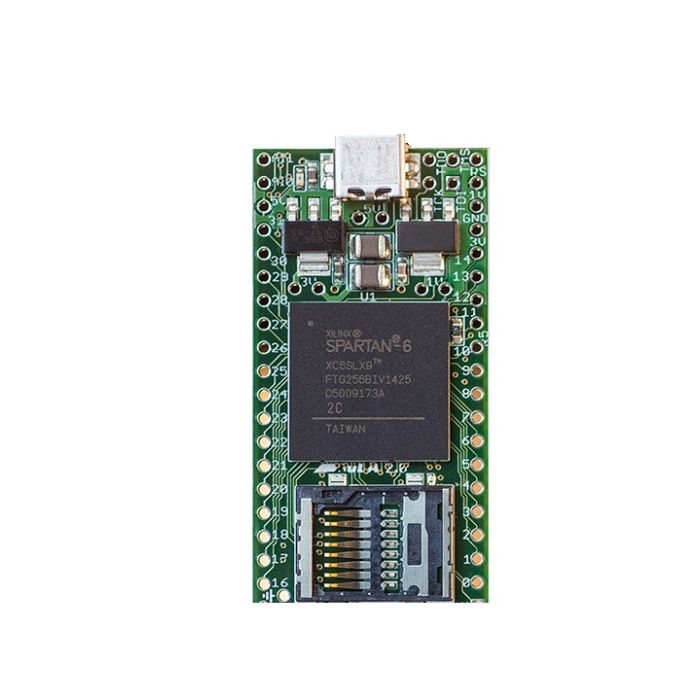

Spartan 6 XULA2-LX9 FPGA Board
PKR 7,000.00
SKU
BD-00010
The XuLA2-LX9 is built to provide just the things you need so you can spend your time adding the features you want. It crams a 600,000-gate FPGA, 32 MByte SDRAM, 8 Mbit Flash, microSD memory card, two voltage regulators and a supervisory microcontroller into a 2" x 1" footprint (51 mm x 25 mm for you metric guys).
The XuLA2-LX9 is built to provide just the things you need so you can spend your time adding the features you want. It crams a 600,000-gate FPGA, 32 MByte SDRAM, 8 Mbit Flash, microSD memory card, two voltage regulators and a supervisory microcontroller into a 2" x 1" footprint (51 mm x 25 mm for you metric guys). Just plug the XuLA2 into your circuit and connect a USB cable to download and test your design. Once you have your design just the way you want it, you can program it into the Flash and the XuLA2 will load it whenever power is applied. It's really that simple.
Specifications:
- XC6SLX9 FPGA.v
- 32 MByte SDRAM.
- 8 Mbit Flash.
- MicroSD card socket.
- 3.3 & 1.2V regulators.
- 40-pin interface.
- 12 MHz oscillator.
- PIC 18F14K50 micro.
- USB 2.0 port.
- Auxiliary JTAG port.
- Works with the XSTOOLs software.
- Works with XILINX ISE and WebPACK.
- Works with XILINX iMPACT and ChipScope (requires Xilinx JTAG cable).
Block Diagram:
| Part Number | XULA2-LX9 |
|---|---|
| Manufacturer | Xilinx |
| Weight (KG) | 0.300000 |
