Xilinx Spartan-3AN FPGA Starter Kit

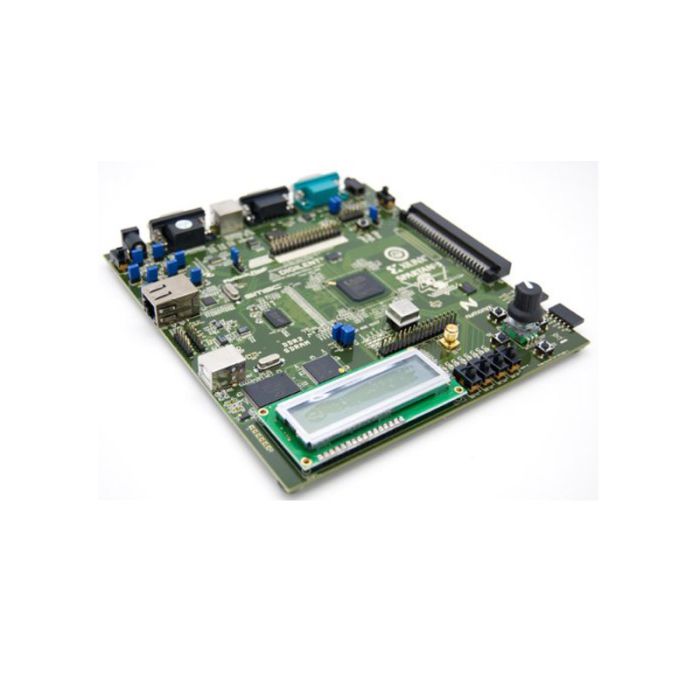

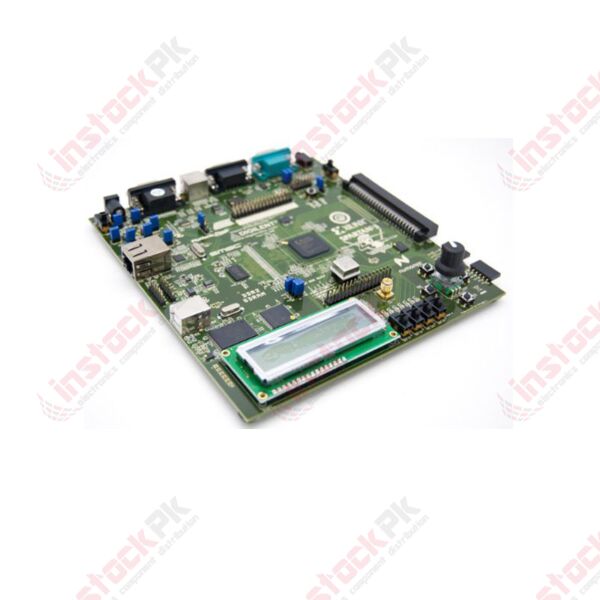

The HW-SPAR3AN-SK-UNI-G is a Spartan-3AN FPGA starter kit. This general purpose non volatile FPGA platform evaluation board includes 10/100 Ethernet/PHY, ADC/DAC circuitry, and connectivity options. Robust subsystems allow to multiboot pre programmed reference designs in a single session. Can prototype countless applications with support for 26 single ended and differential I/O standards. It connects to DDR2 memory for rapid data transfer using proven memory interface controller. Shorten development time with pre verified design files and schematics.

FEATURES:

1. Multiboot pre-programmed reference designs in a single session.
2. Prototype countless applications with support for 26 single-ended and differential I/O standards.
3. Connect to DDR2 memory for rapid data transfer using proven memory interface controller.
4. Shorten development time with pre-verified design files and schematics.

SPECIFICATIONS:

1. Spartan-3AN (XC3S700AN-FG484)
2. Platform flash (XCF04S-VOG20C)
3. 50MHz crystal oscillator on-board
4. 32M x 16 DDR2 SDRAM
5. Ethernet 10/100 PHY
6. JTAG USB download port
7. Two 9 pin RS232 serial port
8. PS/2 style mouse/keyboard port
9. Stereo mini jack for PWM audio
10. 16 character, 2 line LCD display

PIN DIAGRAM:

RELATED DOCUMENTS:

1. Xilinx Spartan-3AN FPGA Datasheet

PACKAGE INCLUDES:

1. 1 X Xilinx Spartan-3AN FPGA Starter Kit
