Xilinx: AMD Zynq UltraScale+™ MPSoC ZCU102 Evaluation Kit - EK-U1-ZCU102-G

SKU
MD-02280
main product photo
Xilinx
PKR950,000.00
Available Quantity: 1
Notify me when the price drops
Category: FPGA Boards

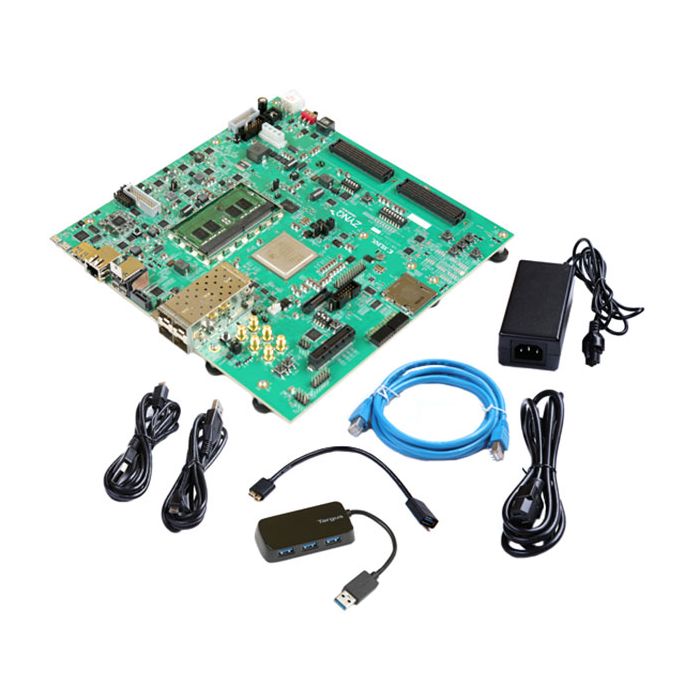

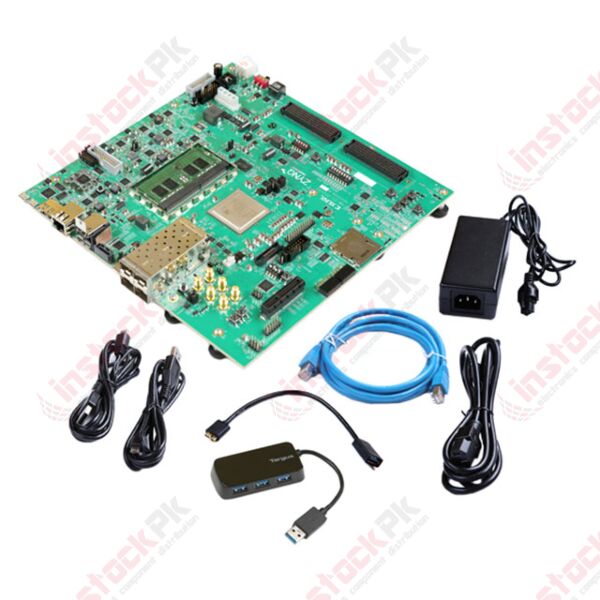

The ZCU102 Evaluation Kit enables designers to jumpstart designs for automotive, industrial, video, and communications applications. This kit features an AMD Zynq™ UltraScale+™ MPSoC with a quad-core Arm® Cortex®-A53, dual-core Cortex-R5F real-time processors, and a Mali™-400 MP2 graphics processing unit based on 16nm FinFET+ programmable logic fabric by AMD. The ZCU102 supports all major peripherals and interfaces, enabling development for a wide range of applications.

Key Features & Benefits

  • Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
  • DDR4 SODIMM – 4GB 64-bit w/ ECC attached to processing system (PS)
  • DDR4 Component – 512MB 16-bit attached to programmable logic (PL)
  • PCIe® Root Port Gen2 x4, USB3, DisplayPort™, and SATA
  • 4x SFP+ interfaces for Ethernet
  • 2x FPGA Mezzanine Card (FMC) interfaces for I/O expansion, including 16 16.3Gb/s GTH transceivers and 64 user-defined differential I/O signals

Board Features

Featuring the ZCU102 Evaluation Board

Communication & Networking
Clocking
Display
Expansion Connectors
RGMII communications at 10, 100, or 1000 Mb/s. Serial GMII interface-supports a 1 Gb/s SGMII interface Programmable clocks HDMI™ video input and output (3 GTH)
  • 2x FMC-HPC connectors (16 GTH Transceivers,  64 differential user defined signals)
  • 4x SFP+ cage
  • System clocks, user clocks, jitter attenuated clocks
  • External Retimer device driving an HDMI output connector
  • 2x Pmod headers
  • SMA GTH support (4x SMA Tx/Rx connectors)
  • 2x SMA MGT input clocks
  • 9x GPIO user LEDs (8x PL, 1x PS)
  • IIC
  • UART To USB bridge

  • VESA DisplayPort™ 1.2 source-only controller supports up to two lanes of main link data at rates of 1.62 Gb/s, 2.70 Gb/s, or 5.40 Gb/s.

  • RJ-45 Ethernet connector

  • SATA (1 x GTR)**

  • PCIe® Gen2x4 Root Port**



Configuration
Memory
Control & I/O
Power
  • Onboard JTAG configuration circuitry to enable configuration over USB
  • PS 4GB DDR4 64-bit SODIMM w/ ECC
  • 6x Directional Push Buttons (5x PL, 1x PS)

  • Dual Quad-SPI flash memory
  • PL 512MB DDR4 component memory ([256 Mb x 16] devices) at 1200MHz / 2400Mb/s DDR
  • DIP switches (8x PL)
  • 12V wall adapter or ATX
  • Boot from SD card
  • 8KB IIC EEPROM
  • PMBUS & System Controller MSP430 for power, clocks, and I2C bus switching


  • Dual 64MB Quad SPI flash
  • USB2/3 (MIO ULPI and 1 GTR)**


  • SD card slot

  •
  • ** Switch enables either PCIe Root Port OR SATA, USB2/3 & DisplayPort
  •
  • 6x Directional Push Buttons (5x PL, 1x PS)

Featured AMD Devices

Featuring the Zynq UltraScale+ XCZU9EG-2FFVB1156 MPSoC

System Logic Cells (K)

600

DSP Slices

2,520

Memory (Mb)

32.1

I/0 Pins

328
Part Number EK-U1-ZCU102-G
Manufacturer Xilinx
Weight (KG) 2.000000
Packing Unit 1 Piece
Product Availability In Stock
