Xess Corporation - Spartan-6 FPGA Development Board XuLA2-LX25
SKU
MD-01009
PKR17,800.00
Quantity: 0

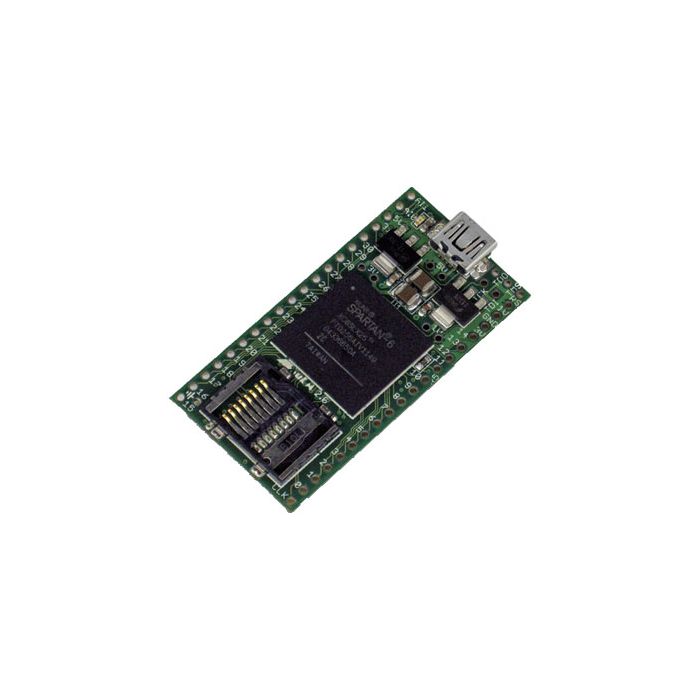

Xess Corporation Spartan-6 FPGA Development Board XuLA2-LX25
Categories: Smart Boards, FPGA Boards, Programmable IC's, FPGA, Development Boards, FPGA
XuLA2-LX25 consist of 1,500,000-gate FPGA, 32 MByte SDRAM, 8 Mbit Flash, microSD memory card, two voltage regulators and a supervisory microcontroller into a 2" x 1" footprint. Just plug the XuLA2 into your circuit and connect a USB cable to download and test your design. Once you have your design just the way you want it, you can program it into the Flash and the XuLA2 will load it whenever power is applied. It's really that simple.
SPECIFICATIONS:
- Spartan-6 XC6SLX25 (1,500,000-gate)
- 32 MByte SDRAM
- 8 Mbit Flash
- MicroSD memory card slot
- Two voltage regulators
- Supervisory microcontroller PIC 18F14K50
- Inputs/Outputs: 33 / 33
RELATED DOCUMENTS:
OPERATING SYSTEM:
- Microsoft Windows or Linux OS
- XSTOOLs software
- XILINX ISE and WebPACK
PACKAGE INCLUDES:
- 1 X Xess Corporation Spartan-6 FPGA Development Board XuLA2-LX25
| Part Number | NA |
|---|---|
| Weight (KG) | 0.060000 |
| Manufacturer | Xess Corporation |
| Model Number | XuLA2LX25 |
| Voltage (V) | 5 |
| Current (A) | NA |
| Power | NA |
| Processor | Spartan-6 XC6SLX25 |
| Frequency | NA |
| Memory | 8 MB |
| Operating System | Microsoft Windows or Linux OS XSTOOLs software XILINX ISE and WebPACK |
| Temperature Range (Min) | -40°C |
| Bluetooth Interface | No |
| Interface | USB 2.0 |
| Size (mm) | NA |
