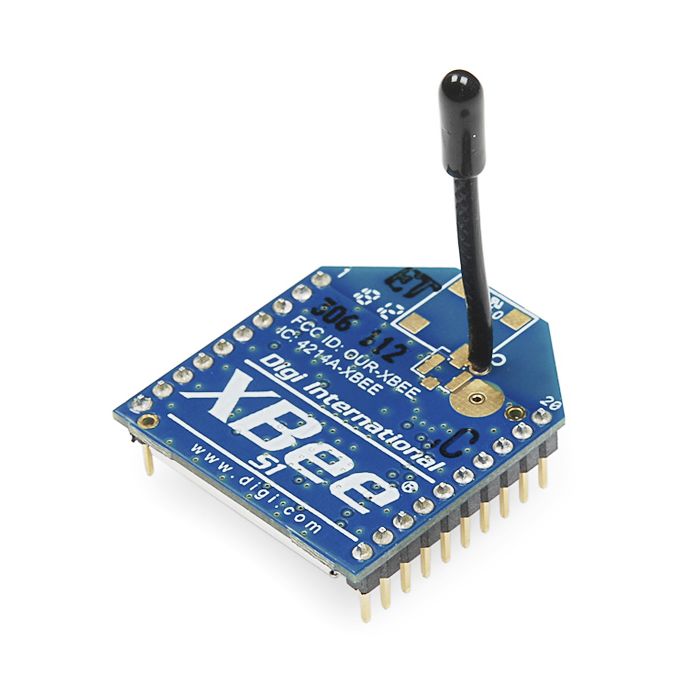

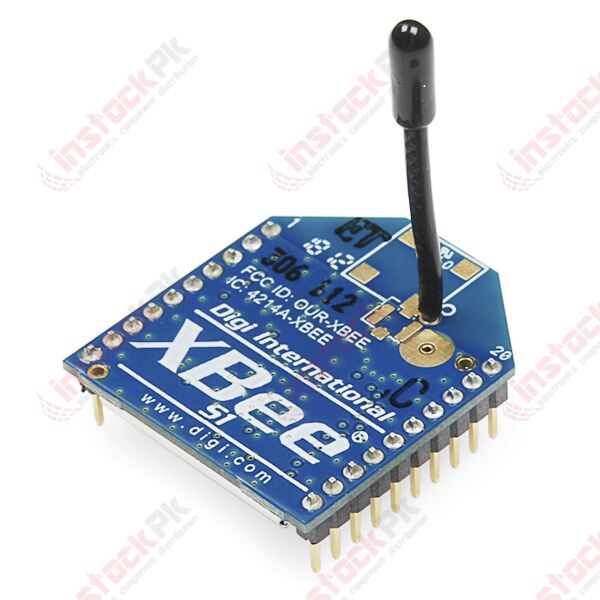

XBEE 1mW Wire Antenna - Series 1 (802.15.4)

SKU
MD-00029
-25%
Special Price PKR4,060.00 was PKR5,400.00
Quantity: 0
This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

XBee OEM RF modules are embedded solutions providing wireless end-point connectivity to devices. This is a popular 2.4GHz low-power XBee module from Digi. These modules use the IEEE 802.15.4 networking protocol (the basis for Zigbee) for fast point-to-multipoint or peer-to-peer networking and wrap it into a simple to use serial command set, and these usually referred to as S1 modules. They are designed for high-throughput applications requiring low latency and predictable communication timing. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Features:










1) 3.3V @ 50mA
2) 250kbps Max data rate
3) 1mW output (+0dBm)
4) 300ft (100m) range
5) Wire antenna
6) Fully FCC certified
7) 6 10-bit ADC input pins
8) 8 digital IO pins
9) 128-bit encryption
10) Local or over-air configuration
11) AT or API command set

Part Number NA
Manufacturer Made in China
Weight (KG) 0.050000
