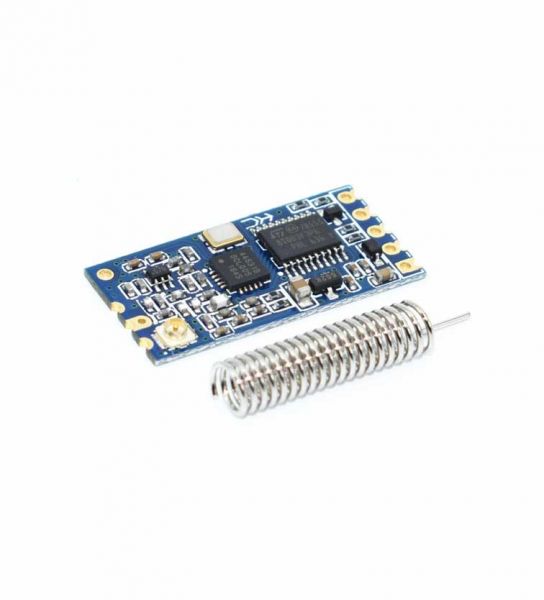

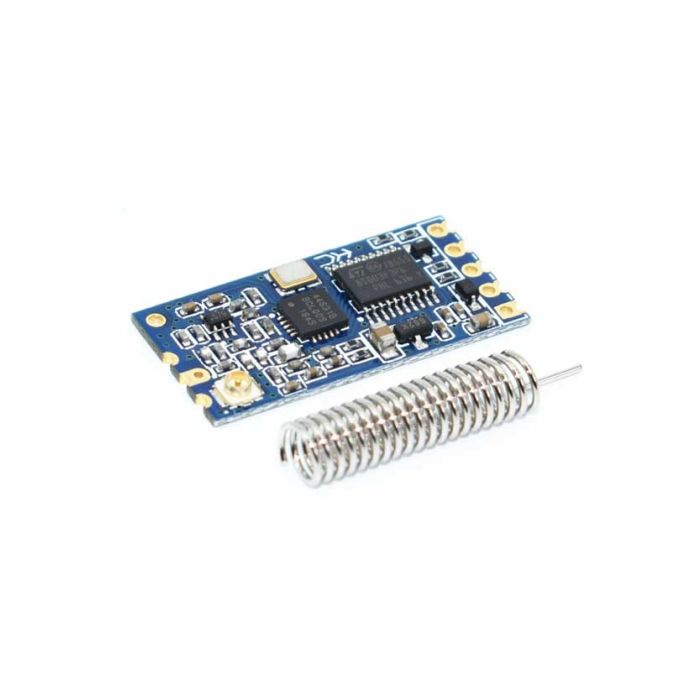

Wireless Serial Port Communication Module HC-12 HC12 (433 MHz)

HC-12 wireless serial port communication module is a new-generation multichannel embedded wireless data transmission module. Its wireless working frequency band is 433.4-473.0MHz, multiple channels can be set, with the stepping of 400 KHz, and there are totally 100 channels. The maximum transmitting power of module is 100mW (20dBm), the receiving sensitivity is -117dBm at baud rate of 5,000bps in the air, and the communication distance is 1,000m in open space.

FEATURES:

1. Long-distance wireless transmission (1,000m in open space/baud rate 5,000bps in the air)
2. Working frequency range (433.4-473.0MHz, up to 100 communication channels)
3. Maximum 100mW (20dBm) transmitting power (8 gears of power can be set)
4. Three working modes, adapting to different application situations
5. Built-in MCU, performing communication with external device through serial port
6. The number of bytes transmitted unlimited to one time
7. Update software version

RELATED DOCUMENTS:

1. Datasheet.

APPLICATIONS:

1. Wireless sensor
2. Community building security
3. Robot wireless control
4. Industrial remote control and telemetering
5. Automatic data acquisition
6. Container information management
7. POS system
8. Wireless acquisition of gas meter data
9. Vehicle keyless entry system
10. PC wireless networking

PACKAGE INCLUDES:

1. 1 X Wireless Serial Port Communication Module HC-12 (433 MHz)
