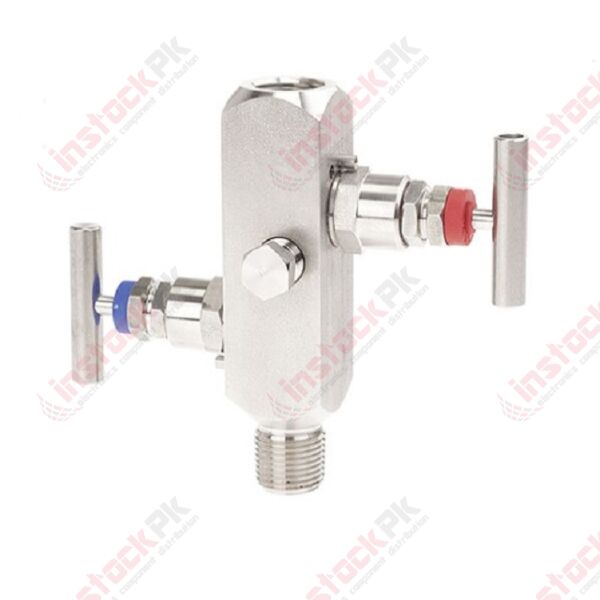

WIKA: Stainless Steel Block and Bleed Valve 316L 6000PSI - 47442334

SKU
MD-02051
PKR66,500.00
Quantity: 1

V202 1/2NPTM-1/2NPTF A316 1/4NPTF PTFE 6k

Technical Information

Specifications according to data sheet AC 09.19
Medium temperature max. +204°C [400°F] - PTFE
Medium temperature max. +538°C [1.000°F] - graphite
Medium temperature max. +180°C [356 °F] - TA-Luft/ISO15848
Body material other materials also available on request

Standard article

Version Block and bleed valve, 2-valve manifold
Material body Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Nominal pressure 6000 psi / 420 bar
Material packing PTFE
Bonnet design Standard
Certificates accessory NACE MR0175 Sour Gas Service & Inspection certificate 3.1, EN 10204, all wetted parts material
Design: Square, In-line
In / Out Connection 1/2NPT Male / 1/2NPT Female
Vent/Drain Connection 1/4" NPT female with plug
Valve position IN-Line
Mounting Without bracket hole
Bolt for manifolds Without


Part Number 47442334
Manufacturer WIKA Alexander Wiegand SE & Co. KG
Weight (KG) 0.800000
Packing Unit 1pc
Product Availability In Stock
