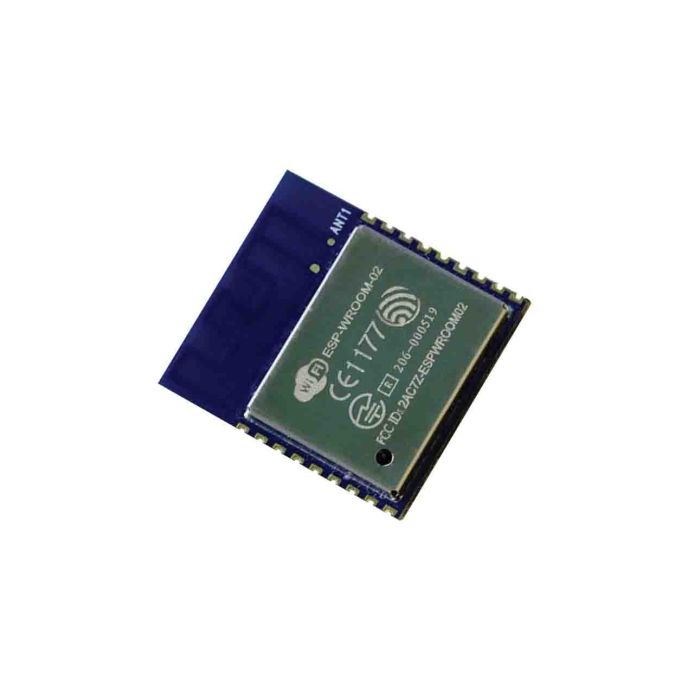

Wi-Fi Module ESP8266-WROOM-02

The ESP-WROOM-02 module is a highly integrated WiFi 802.11 b/g/n module that consumes extremely low power while providing a wireless internet connection for embedded devices. With a very small form factor (18mm by 20mm), this wireless module easily assimilates into resource limited devices. These features make it a great choice for OEMs to connect their IoT (Internet of Things) applications.

Embedded with the ESP8266EX chip, the ESP-WROOM-02 module is a 32-bit low power micro-controller (MCU) that integrates with TCP/IP network stacks; the included 10-bit ACD interfaces with HSPI, SDIO, UART, PWM, I2C and I2S. Programs and firmware can be stored in the integrated SPI flash with 4MB capacity.

FEATURES:

1. Fast sleep/wake context switching
2. Adaptive radio biasing
3. Advance signal processing
4. Integrated low power 32-bit MCU
5. Integrated TCP/IP protocol stack
6. Integrated TR switch, balun, LNA, power amplifier and matching network
7. Integrated PLL, regulators and power management unit
8. Supports security protocols WPA/WPA2
9. Supports Station / SoftAP / Station+SoftAP operation modes
10. Supports Tranmission Control Protocol (TCP) and User Datagram Protocol (UDP)
11. Supports WiFi Protected Setup (WPS) for easy setup and configuration
12. Supports mesh networking
13. Supports Smart Link Function for both Android and iOS devices
14. Supports Cloud Server Development
15. Custom firmware development via SDK
16. Download and write firmware via host
17. User configuration via AT Instruction Set, Cloud Server and Android/iOs App
18. FCC, CE and TELEC certified

SPECIFICATIONS:

1. Security: WPA/WPA2
2. Encryption: WEP/TKIP/AES
3. FREQUENCY BAND 2.4GHz-2.5GHz (2400M-2483.5M)
4. Wi-Fi mode: station/SoftAP/SoftAP+station
5. UART, I2S
6. Wake up and transmit packets in < 2ms
7. WiFi: 802.11 b/g/n
8. TCP/UDP/HTTP/FTP
9. POWER CONSUMPTION: Standby power consumption of <1.0mW (DTIM3)
10. VOLTAGE      Operating: 3.0 ~ 3.6V
11. Deep sleep power <10uA, Power down leakage current < 5UA,+20dBm output power in 802.11b mode
12. CERTIFICATIONS: FCC, CE, TELEC
13. FIRMWARE:Upgrade: UART Download / OTA (via network)
14. ANTENNA: 3DBi PCB-on-board antenna
15. TEMPERATURE RANGE: Operating: -40ºC to 125ºC (-40ºF to 257ºF)

RELATED DOCUMENTS:

1. Datasheet.

PACKAGE INCLUDES:

1. 1 X Wi-Fi Module ESP8266-WROOM-02
