Weller: 2 Channel Soldering Rework Station WX2021 200 W (255 W) 230V - T0053422699N

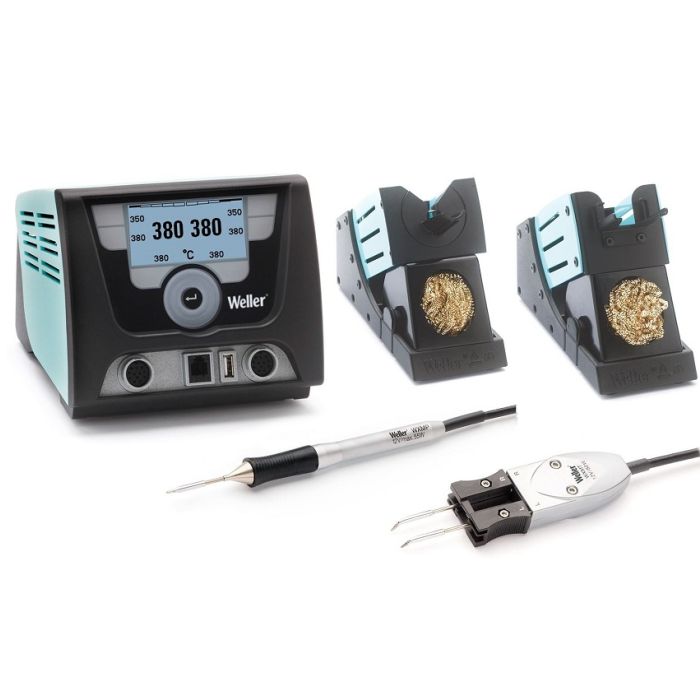

The Weller WX 2021 soldering station is a multifunctional station with a power of 255W and two channels. The Weller WX 2021 is equipped with desoldering tweezers and a soldering iron that uses active tips especially designed to solder SMD components. The temperature of the soldering station ranges from 100°C - 550°C and the tips are able to achieve a temperature of 350°C within 5 seconds. One of the advantages of this product is that both channels are compatible with all the active and passive Weller WX series soldering irons and desoldering irons, and tweezers; feel free to contact us if you want more information. Other features of the WX 2021 are its touch screen display, data logging capabilities, RS232 programmability and standby-mode that reduces energy consumption while the station is not in use.
Technical data
| Length | 6.8 in |
| Dimensions L x W x H | 174.0 x 154.0 x 135.0mm |
| Automatic Tool Identification | Yes |
| Benchtop Controller | Yes |
| Equipotential Bonding Socket | Via 3.5mm pawl socket on back of device |
| ESD Safe | Yes |
| Fuse | T2A |
| Interface | 1x USB, 2x RS232, 1x Switching Output |
| Multilingual Display | Yes |
| Number of Channels | 2 |
| Power | 200 W (255 W) |
| Temperature Accuracy °C | ± 9°C |
| Temperature Accuracy °F | ± 17°F |
| Temperature Range (Depends on Tool) | Adjustable from 100°C - 550°C (200°F - 999°F) Adjustable temperature range varies among tools |
| Temperature Range °C | 100 - 450 °C |
| Temperature Range °F | 200 - 850 °F |
| Temperature Stability °C | ± 2°C |
| Temperature Stability °F | ± 4°F |
| Tip Range | RT3MS (T0054461699) RTW2MS (T0054465799) |
| Tip Type | RT3MS WX |
| Traceability | Yes |
| UPC | 037103304810 |
| USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
| Voltage | 230V |
| Weight (Catalog) | 3.45 kg |
| Product Family | WX Line Soldering Stations |
Accessories
The WX 2021 comes by default with:
- WDH 51 soldering iron holder
- WDH 60 desoldering iron holder
- WXMP micro soldering iron
- WXMT micro desoldering tweezers
- RTM 013 S soldering tip chisel (1.3 x 0.4 mm)
- RTW 2 45° soldering tip tweezer (0.7 x 0.4 mm, 45°)
- Power cable
| Part Number | T0053422699N WX2021 |
|---|---|
| Manufacturer | Weller Tools |
| Weight (KG) | 5.000000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
