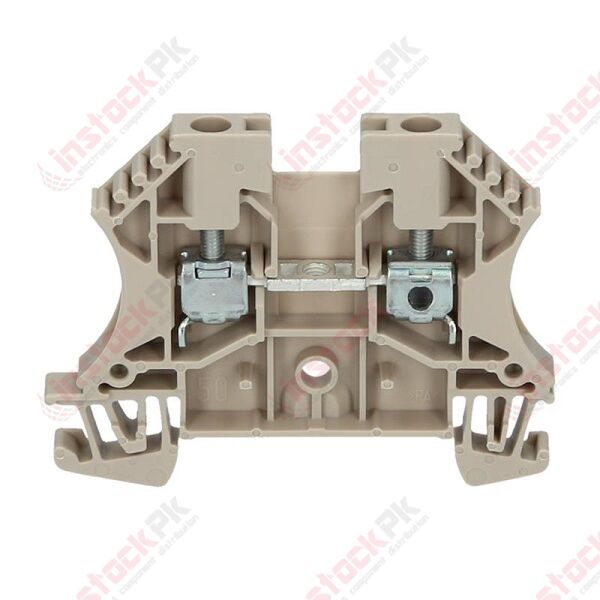

Weidmuller: Feed Through Terminal Block WDU 4 - 1020100000

SKU
MD-01785
PKR350.00
Quantity: 21
DIN Rail Mount Terminal Block, 2 Positions, 22 AWG, 10 AWG, 4 mm², Screw, 32 A
  • Buy 3 for PKR332.50 each and save 5%
  • Buy 10 for PKR322.00 each and save 8%

’W’ Series Terminal Blocks


One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.


Features and Benefits:


Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals


Product Application Information


Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.


A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.


Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.


Product Application Information


Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.


Approvals

1-11



The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.


Specifications

Attribute Value
Series WDU
Wire Size 26 → 10 AWG
Colour Beige
Number of Levels Single
Termination Method Screw
Cable CSA 4mm²
Current Rating 32A
Voltage Rating 800 V
Minimum Operating Temperature -50°C
Maximum Operating Temperature +120°C
Hazardous Area Certification ATEX
Part Number 1020100000 WDU4
Manufacturer Weidmüller Interface GmbH & Co. KG
Product Availability Available on Demand
